| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B |
| 모델 번호: | ASME SA213 T5, UNS K41545 |
| 최소 주문 수량: | 100KGS |
|---|---|
| 포장 세부 사항: | 번들, 포대, 합판 상자 |
| 배달 시간: | 7일 |
| 지불 조건: | 신용장, 티/티 |
| 재료: | T1,T11, T12, T2, T22, T23, T5, T9, T91, T92 | 기준: | A213,SA213 |
|---|---|---|---|
| 애플리케이션: | 보일에, 열교환기 | 표면: | 검고 기름을 바릅니다 |

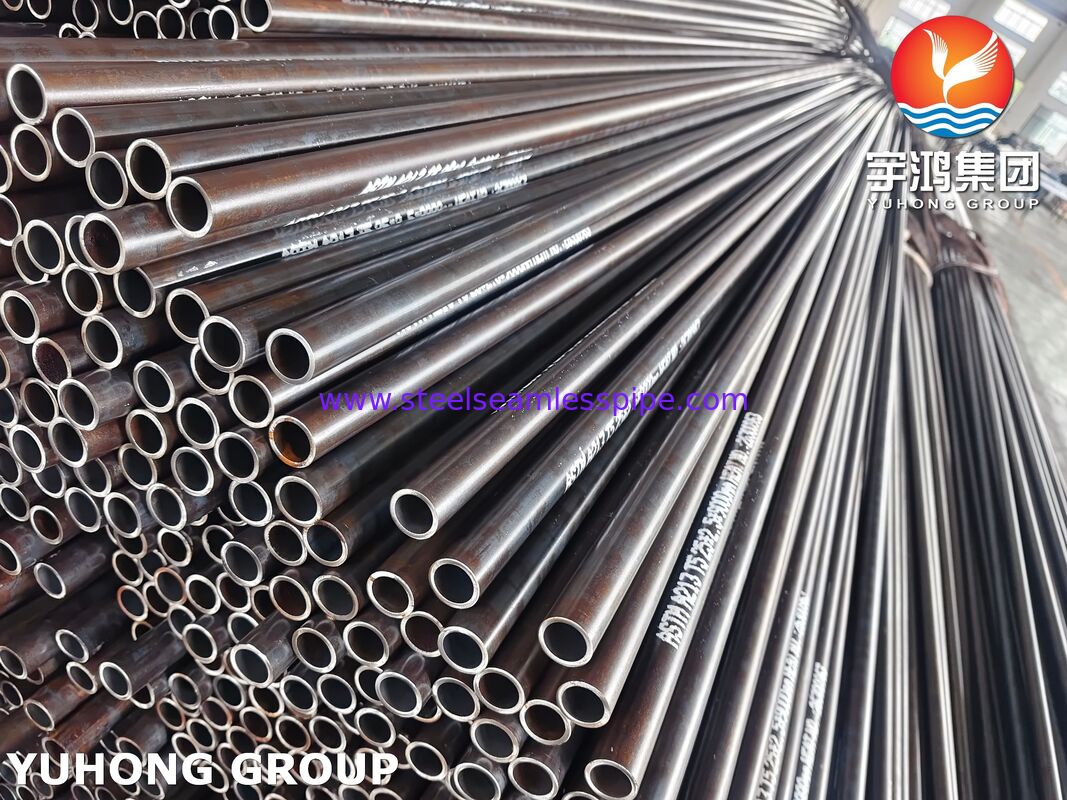

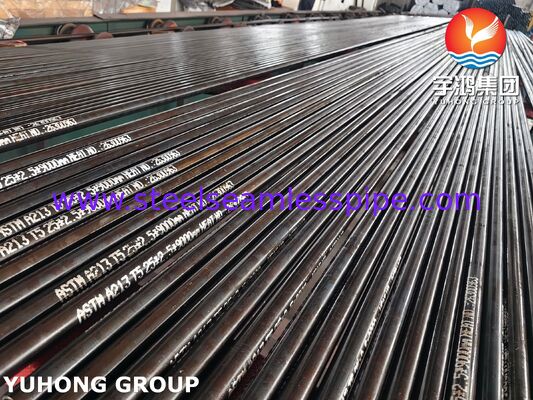

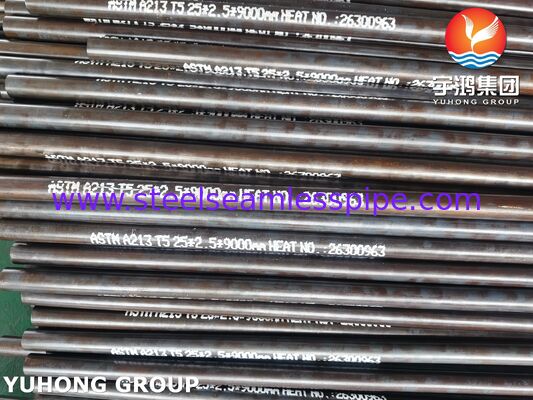

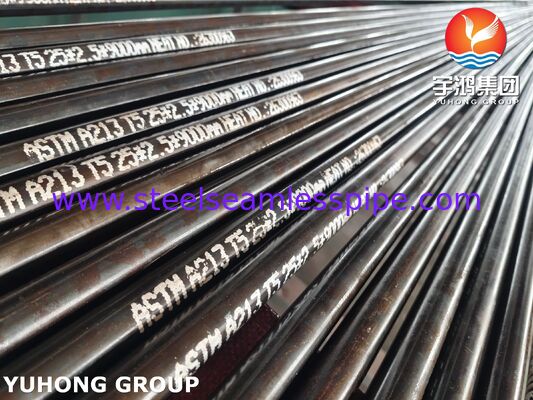

Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
A213 T5 tube is a specific type of seamless alloy steel tube manufactured according to the ASTM A213 standard, designed for high-temperature service in boilers, superheaters, and heat exchangers
Comparison with Other Grades:
SA213 T11: Similar to T5 but with slightly higher chromium content (1.00-1.50%) and lower molybdenum content (0.44-0.65%).
SA213 T22: Higher chromium (1.90-2.60%) and molybdenum (0.87-1.13%) content, offering better high-temperature strength and corrosion resistance.
SA213 T9: Higher chromium (8.00-10.00%) and molybdenum (0.90-1.10%) content, suitable for even more demanding high-temperature applications.
Standards and Certifications:
ASME SA213: Standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
ASTM A213: Equivalent to ASME SA213, used for the same applications.
Main Materials:
Chemical Composition
| Grade | C | Si | Mn | Cr | Mo | S | P |
| T5/UNS K41545 |
0.15Max |
1.00-2.00 | 0.30-0.60 | 4.00-6.00 | 0.45-0.65 | 0.025 | 0.025 |
ASTM A213 T5 has several international equivalents .
| Standard | Grade / Material |
| ASTM(Pipe) | A335 P5 |
| JIS | STBA25 |
| EN / DIN | X11CrMo5 |
| GOST | 15Ch5M |
| T5 Tube | T5b Tube | T5c Tube | |
| Tensile Strength | 415 Minimum | 415 Minimum | 415 Minimum |
| Yield Strength | 205 Minimum | 205 Minimum | 205 Minimum |
| Elongation | 30 Minimum | 30 Minimum | 30 Minimum |
| Hardness | 163 Maximum | 179 Maximum | 163 Maximum |
