| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B |
| 모델 번호: | ASTM A335 P91 합금 강철 톱니 없는 파이프 |
| 최소 주문 수량: | 500kg |
|---|---|
| 포장 세부 사항: | 플라스틱 캡과 함께 나무로 되는 케이스 /Iron Case/ 뭉치 |
| 배달 시간: | 7일 |
| 지불 조건: | 신용장, 전신환 |
| 제품명: | 합금 강 이음매 없는 관 | 기준: | ASTM A335 / ASME SA335 |
|---|---|---|---|
| 재료: | P91, UNS K90901, EN 1.4903 | OD: | 1/2 "~ 24"또는 큰 |
| WT: | SCH XXS에 대한 SCH 10대 | 길이: | 단일 무작위, 이중 무작위 및 절단 길이 |
| 끝: | 일반 끝, 경 사진 끝 | 유형: | 원활한 |
| 애플리케이션: | 발전소, 석유화학, 보일러관, 석유 및 가스 산업 | ||
| 하이 라이트: | ASTM A335 P91 합금강 이음매 없는 파이프, 이음매 없는 강철 UNS K90901 보일러관 | ||

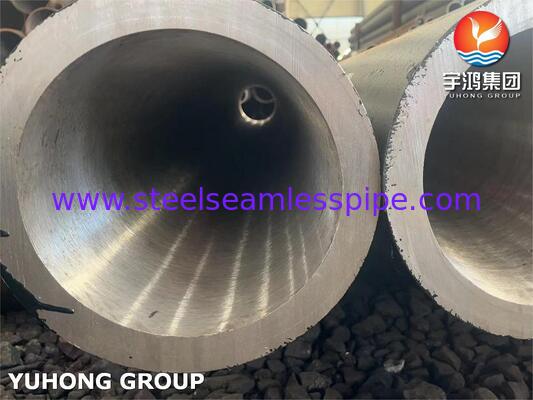

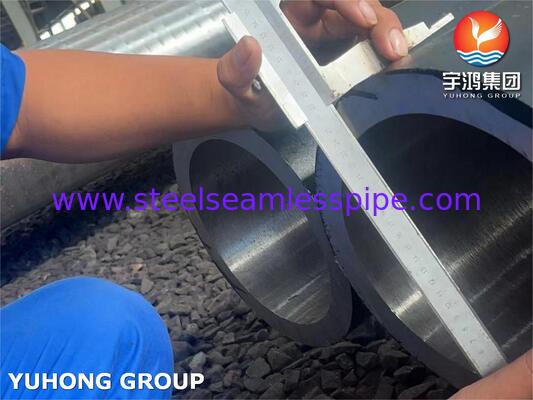

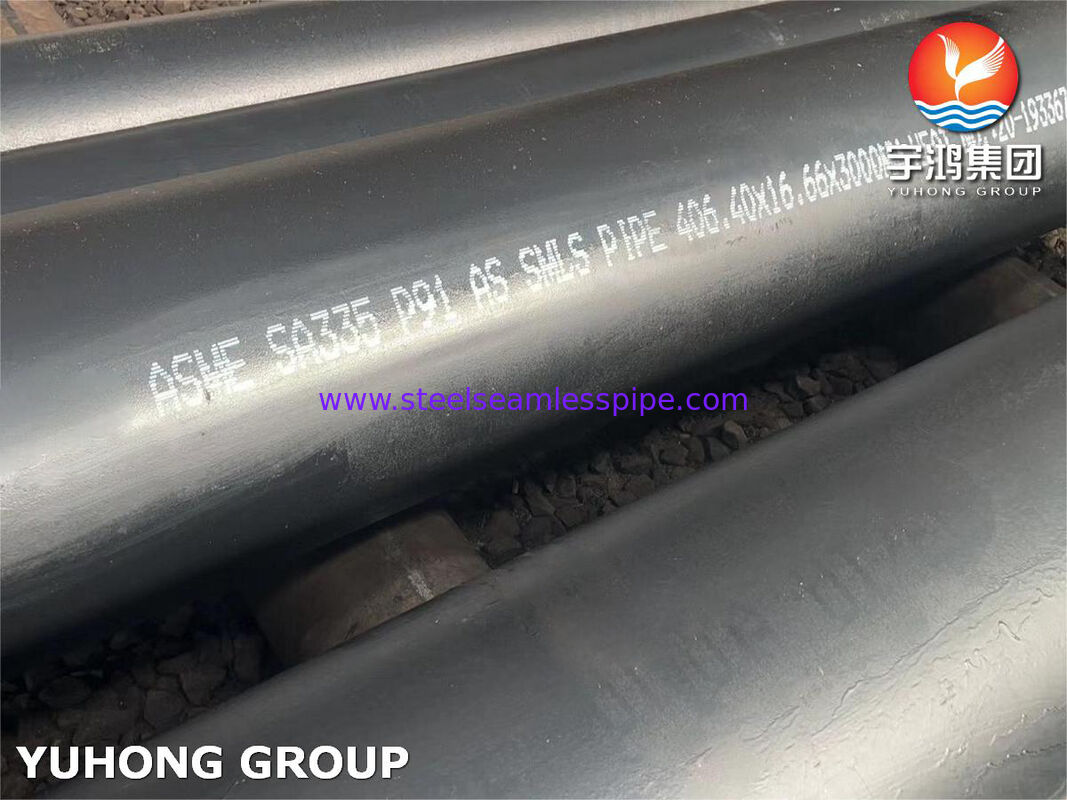

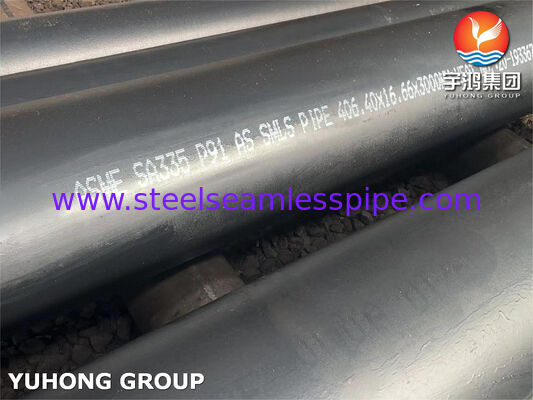

ASTM A335 / ASME SA335 P91 Alloy Steel Seamless Pipe for High-Temperature Service
ASTM A335 P91 (UNS K90901 / EN 1.4903) is a high-alloy martensitic steel with ~9% Chromium, Molybdenum, Vanadium, Niobium, and Nitrogen. Designed for boiler tubes and main steam piping, it offers exceptional creep strength up to 620°C and superior oxidation resistance—allowing thinner, lighter walls than traditional low-alloy grades. It is mandatory to use this material in the normalized + tempered condition. Critical warning: It is air-hardening; therefore, all welded joints require strict preheating (200–250°C) and mandatory Post-Weld Heat Treatment (730–760°C) to prevent cracking.
Key Features & Advantages (Why High-Alloyed Grade P91?)
Superior Oxidation Resistance: The ~9% Chromium content provides significantly better resistance to steam-side oxidation and high-temperature flue gas corrosion compared to low-alloy grades (e.g., T22/P22).
High Thermal Stability: Retains strength and structure integrity at extreme temperatures.
Low Thermal Expansion: Lower than austenitic stainless steels (e.g., 304/316), allowing for thinner wall thicknesses and better fatigue resistance under thermal cycling.
Reduced Wall Thickness: Excellent creep strength allows designers to use thinner pipe walls than P22/T22, reducing weight and thermal inertia.
Equivalent Material of ASTM A335 / ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe
| ASTM | ASME | Equivalent material |
|---|---|---|
| A335 P 91 | ASME SA 335 P91 | 1.4903, K90901, X10CrMoVNb9-1 |
Chemical Composition of ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe
| Element | Grade | P5 | P9 | P11 | P22 | P91 | P91 shall also include the following: |
|---|---|---|---|---|---|---|---|
| UNS | K41545 | S50400 | K11597 | K21590 | K91560 | ||
| Carbon | 0.15 max | 0.15 max | 0.05 – 0.15 | 0.05 – 0.15 | 0.08 – 0.12 | V at 0.18 – 0.25 | |
| Manganese | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | N at 0.030 – 0.070 | |
| Phosphorous, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 | Ni at 0.40 max | |
| Sulfur, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.010 | Al at 0.02 max | |
| Silicon | 0.50 max | 0.25 – 1.00 | 0.50 – 1.00 | 0.50 max | 0.20 -0.50 | Cb at 0.06 – 0.10 | |
| Chromium | 4.00 – 6.00 | 8.0 – 10.0 | 1.00 – 1.50 | 1.90 – 2.60 | 8.00 – 9.50 | Ti at 0.01 max | |
| Molybdenum | 0.45 -0.65 | 0.90 – 1.10 | 0.44 – 0.65 | 0.87 – 1.13 | 0.85 – 1.05 | Zr at 0.01 max | |
Mechanical Properties of ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe
| Grade | Tensile strength(MPa) | Yield strength(MPa) | Elongation(%) | Impact energy(J) | Hardness |
| P11 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P12 | ≥ 415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P22 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P5 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 187HB |
| P91 | 585~760 | ≥ 415 | ≥ 20 | ≥ 35 | ≤ 250HB |
| P92 | ≥ 620 | ≥ 440 | ≥ 20 | ≥ 35 | 250HB |
Application
A335/SA335 P91 is suitable for bending, flanging (vanstoning), and similar forming operations and for fusion welding. Its commonly used in below usages.
Superheaters & Reheaters (Boiler tubes).
Main Steam Piping and hot reheat piping.
Headers and manifolds in supercritical and ultra-supercritical coal-fired power plants.
Nuclear power heat exchangers.
Petrochemical high-temperature furnace tubes.
