| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ISO, API , ABS, DNV, GL , LR, NK |
| 모델 번호: | ASTM A182 F55 슈퍼 듀플렉스 스틸 블라인드 플랜지 |
| 최소 주문 수량: | 1개 |
|---|---|
| 포장 세부 사항: | 팔레트, 나무로 된 경우를 부지런히 해나갑니다 |
| 배달 시간: | 7일 |
| 지불 조건: | 신용장, 티/티 |
| 제품명: | 이중 스틸 플랜지 | 기준: | ASTM A182 / ASME SA182 |
|---|---|---|---|
| 재료: | F55, UNS S32760, 1.4501 | OD: | 1/2 "~ 48" |
| WT: | SCH XXS에 대한 SCH 5S | 수업: | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| 유형: | wn, so, bl, sw, lwn | 얼굴: | RF, FF, RTJ |
| 애플리케이션: | 석유, 화학 물질 등, 피팅 및 연결, 맥주 | ||
| 강조하다: | Super Duplex Steel Flange,ASTM A182 F55 Blind Flange,Forged Steel Blind Flange |
||

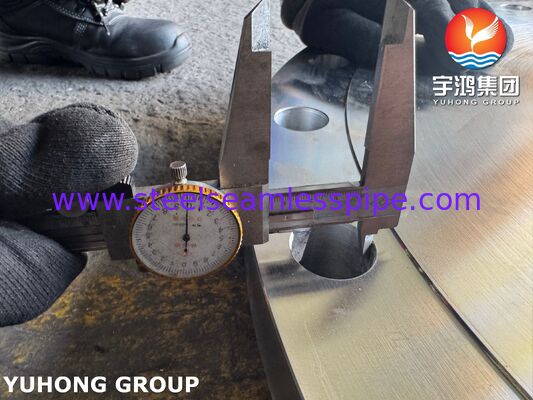

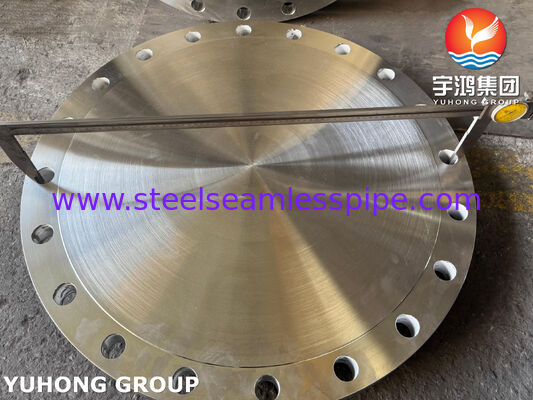

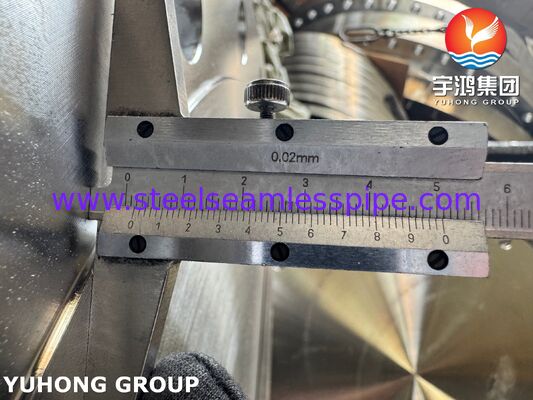

ASTM A182 F55 BLIND FLANGE, UNS S32760 SUPER DUPLEX STAINLESS STEEL FLANGE
ASTM A182 F55 Super Duplex steel blind flange is a solid forged flange manufactured from UNS S32760 (also known as 1.4501), designed to seal pipe ends, pressure vessels, or valve openings. This tungsten-alloyed grade delivers over 550 MPa yield strength and exceptional resistance to chloride pitting and crevice corrosion. Each flange is solution annealed and water quenched to achieve a balanced ferrite-austenite structure. Fully compliant with NACE MR0175 for sour service, it is dimensioned per ASME B16.5 and rated for high-pressure classes. These flanges are critical in subsea systems, desalination plants, and chemical processing where maximum durability and corrosion protection are required.
Chemical Composition % of ASTM A182 F55 Super Duplex Steel WNFF Flange
| Chemical Composition Limits | ||||||||||
| Weight% | C | Mn | P | S | Si | Cr | Ni | Mo | N | W |
| Super Duplex F55 | 0.03 max | 1.00 max | 0.03 max | 0.01 max | 1 max | 24-26 | 4.5-6.5 | 3-4 | 0.25 | 0.08-0.20 |
Mechanical properties of ASTM A182 F55 Super Duplex Steel WNFF Flange
| Alloy | Tensile Strength N/mm² | Yield Strength 0.2% N/mm² | Elongation | Hardness HB |
| Super Duplex F55 | 860 | 720 min | 16 min | 270 max |
Application
PT TEST
