| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | API , ABS, DNV, GL , LR, NK |
| 모델 번호: | AWWA C207 표 2 클래스 D |
| 최소 주문 수량: | 1PC |
|---|---|
| 포장 세부 사항: | 합판 상자, 팔레트 |
| 배달 시간: | 7일 |
| 지불 조건: | 신용장, 전신환 |
| 크기: | 1/2 ~24 | 얼굴: | RF (부낸표면) ;FF (편평면) ;RTJ는 (유형 결합부를 울립니다) ; RJ (공동 표면을 울리세요) TG (홈형자리) ;MF Ｍ (남자이고 여성의 얼굴) |
|---|---|---|---|
| 수업: | 86PSI, 175-150 PSI | 기준: | ANSI/AWWA C207 |
| 강조하다: | A240 F904L steel flange,150# AWWA C207 ring flange,Table 2 Class D steel flange |
||

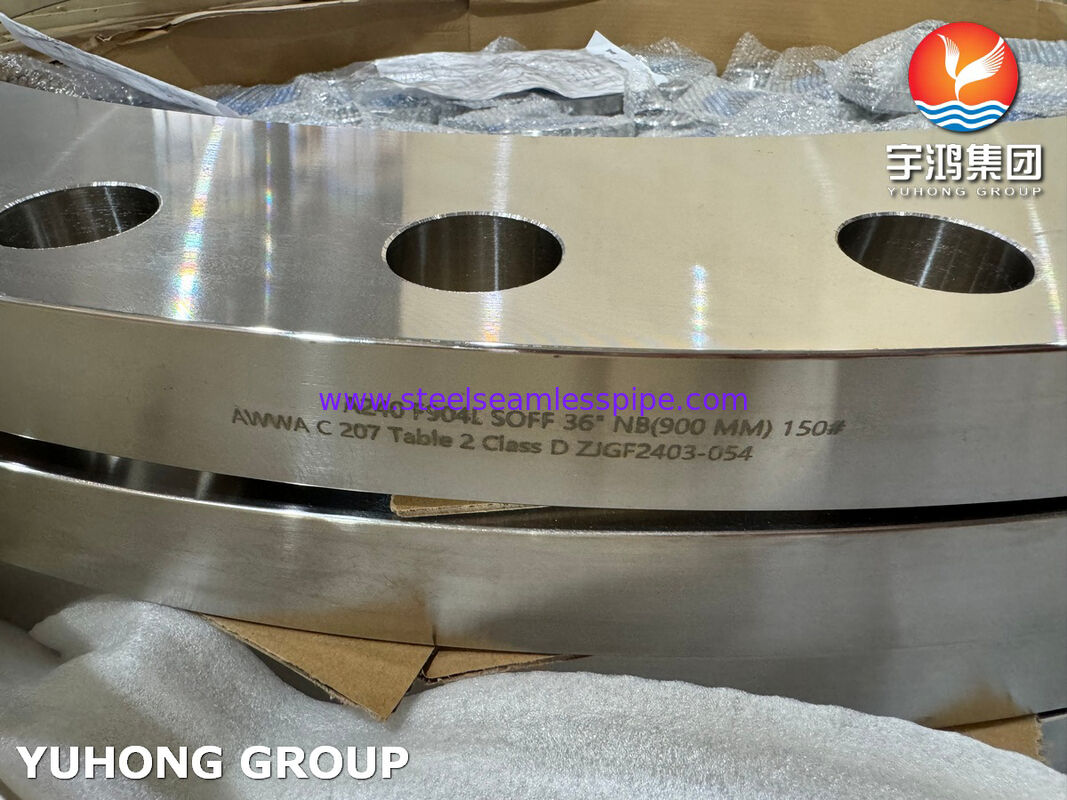

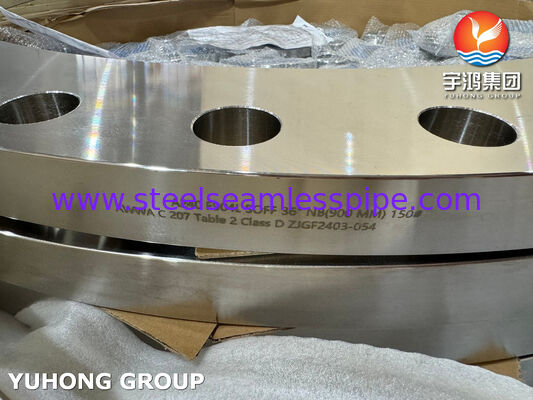

A240 F904L STEEL FLANGE SOFF 150# AWWA C207 Table 2 Ciass D RING FLANGE
An AWWA C207 Ring Flange is a specific type of steel pipe flange standard defined by the American Water Works Association (AWWA) Standard C207, titled "Steel Pipe Flanges for Waterworks Service." It is designed to connect sections of pipe, valves, pumps, and other equipment in municipal water, wastewater, and fire protection systems.
Typical Applications:
|
Type
|
Ring flange |
|
Standard
|
AWWA C207 |
|
Size
|
1/2” - 80”
|
|
Pressure
|
150#-2500#
|
|
Steel Grade
|
F904L |
|
Surface
|
Bright
|
|
Test
|
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Blow Test, Impact Test), Exterior Size Inspection
|
|
Mill Test Certificate
|
EN 10204/3.1B
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L | Min. Max. |
- 0.02 |
- 2 |
- 1 |
- 0.045 |
- 0.035 |
19 23 |
4 5 |
23 28 |
1 2 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 36 | 70-90 typical | 150 |
