| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | Cu-T2 핀이있는 ASTM A106 Gr.B |
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라이 목재 케이스 철강 프레임 ( 파이프의 두 끝은 플라스틱 뚜?? 을 가지고) |
| 배달 시간: | 15-20Work 일 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 고객의 요구 사항에 따라 |
| 제품 이름: | 내장된 Ｇ 타입 핀 관 | 베어 튜브 사양 및 재료: | ASTM A106 GR.B |
|---|---|---|---|
| 핀 재료: | CU-T2 | 베어 튜브 외경: | 16-63mm |
| 핀 높이: | 17mm | 핀 두께: | ~ 0.4mm |
| 핀 피치: | 2.1-5mm | 애플리케이션: | 해외/ 히터/ 석유 화학/ 열교환 기 |
| 테스트: | HT / ET | ||
| 강조하다: | ASTM A106 GR.B fin tube,copper T2 embedded fin tube,offshore platform fin tube |
||

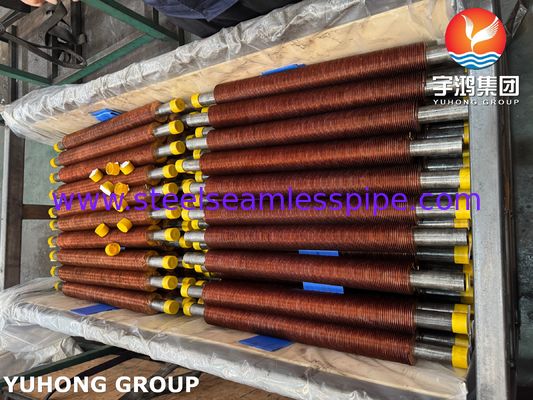

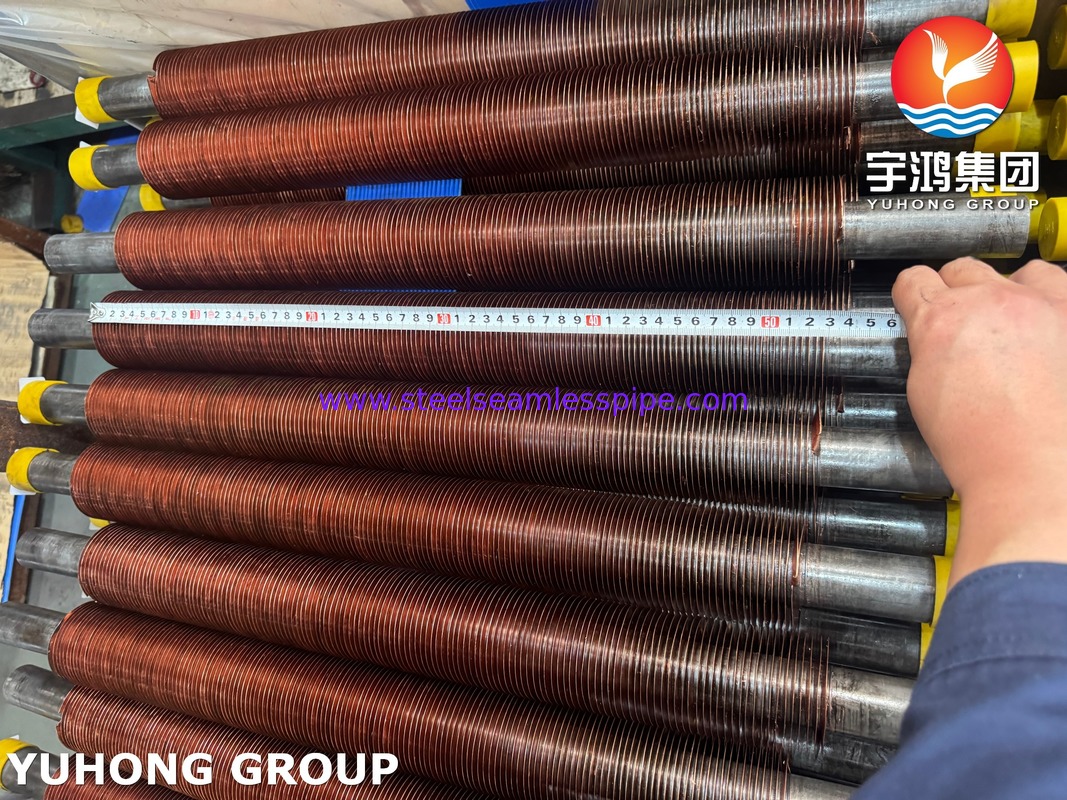

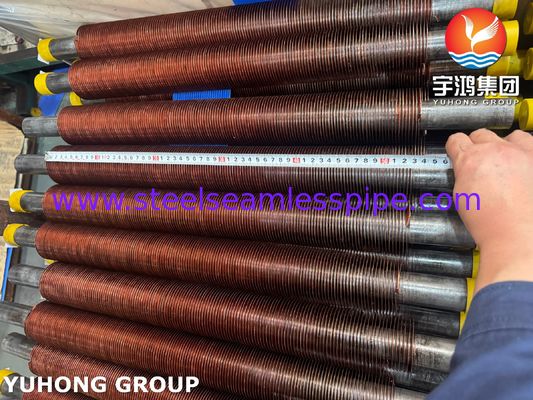

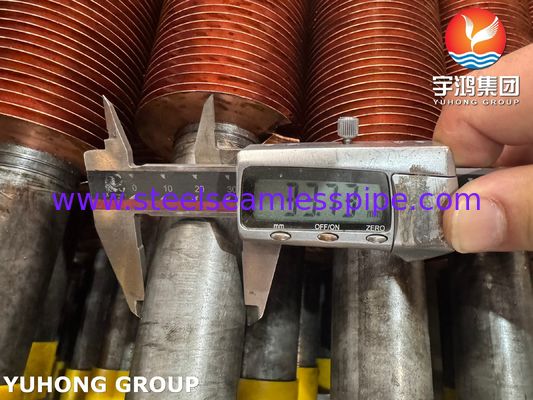

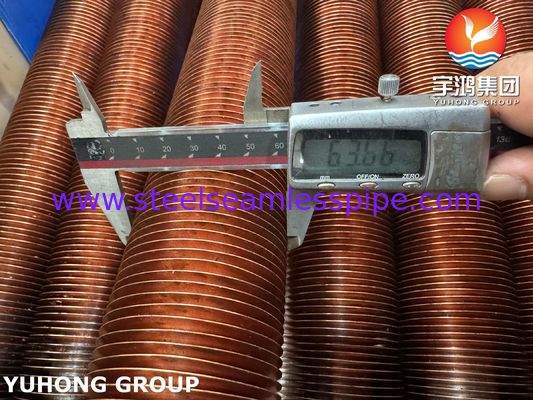

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform
This product is a high-performance, high-reliability composite finned tube engineered specifically for demanding offshore environments. It features a core structure of ASTM A106 GR.B high-strength seamless carbon steel as the base pipe, offering superior pressure-bearing capacity and ensuring structural integrity under high-temperature and high-pressure conditions. The Cu-T2 copper fins are permanently bonded to the base pipe via an advanced embedded manufacturing process.
This unique "Steel-Copper Composite" design delivers exceptional synergistic benefits:
The Steel Base Pipe provides the mechanical strength and ruggedness required to withstand wave-induced stresses, system pressures, and high temperatures.
The Copper Fins leverage their top-tier thermal conductivity to maximize heat transfer efficiency. Furthermore, they utilize the inherent superior corrosion resistance of copper to effectively combat the high-salinity, high-humidity marine atmosphere.
Consequently, this product is the ideal choice for various heat exchangers (such as crude oil heaters, seawater coolers, inert gas system coolers, etc.) on offshore oil & gas platforms, FPSOs, and other marine facilities. It is designed for long-term safe operation, maximized energy efficiency, and minimized lifecycle maintenance costs.
1.Chemical & Mechanical Properties
| ASTM A106 Gr.B Chemical Composition (%) |
|||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| ≤0.30% | 0.29% ~ 1.06% | ≤0.035% |
≤0.035% |
≥0.10% | ≤ 0.40% | ≤ 0.40% | ≤ 0.15% | ≤ 0.40% | ≤ 0.08% |
| Cu-T2 Fin | T2 Copper is a grade of high-purity copper. Its key characteristic is that the combined content of Copper and Silver is not less than 99.90%, meaning the total of other impurity elements must be strictly controlled below 0.1%. It is renowned for its excellent electrical and thermal conductivity. |
Mechanical Properties
| Component | Mechanical Performance | Key Features |
|
ASTM A106 Gr.B |
|
|
| Cu-T2 Fin | ||
| Tensile Strength | Annealed (O) | ≥ 195 MPa |
| Hard (H) | 295 - 380 MPa | |
| Yield Strength | Annealed (O) | ≤ 65 MPa |
| Hard (H) | 250 - 350 MPa | |
| Elongation | Annealed (O) | ≥ 40% |
| Hard (H) | 10% - 20% | |
| Hardness | Annealed (O) | HBW ≤ 40 |
| Hard (H) | HBW 70 - 110 | |
| Shear Strength | Annealed (O) | ~ 150 MPa |
| Hard (H) | ~ 250 MPa | |
2. Key Features
3. Key Applications
