| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | API , ABS, DNV, GL , LR, NK. |
| 모델 번호: | ASTM A182 F11 CL2 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 20-80 |
| 지불 조건: | l/c, t/t |
| 재료: | F11 CL2 | 제품 이름: | 스테인레스 스틸 열 플랜지 |
|---|---|---|---|
| 압력: | 150lb,300lb,600lb,900lb,1500lb | 기준: | 한 ANSI B16.5 ASME B16.47 시리즈 (MSS SP44) |
| 유형: | 나사목 플랜지, 플랜지, 소켓 용접후란지, 웰드 네크 플렌지, 랩 조인트 플랜지 위의 하락 | 프로세스: | 안출된, 드릴링 / 굽힘 / 스탬핑, 캐스팅, 모래 casting& ;CNC machining,Forging+machining+heating 처리 |
| 표면 처리: | 픽엘링, 열처리, 직류 전기로 자극된, 블랙 산화 처리는 특화합니다 | 점검: | 메치니컬 특성 검증, 공장 또는 제 3자 Assigned,100% 감사 |
| 강조하다: | ASTM A182 F11 weld neck flange,steel flange for power generation,Cl2 weld neck flange with warranty |
||

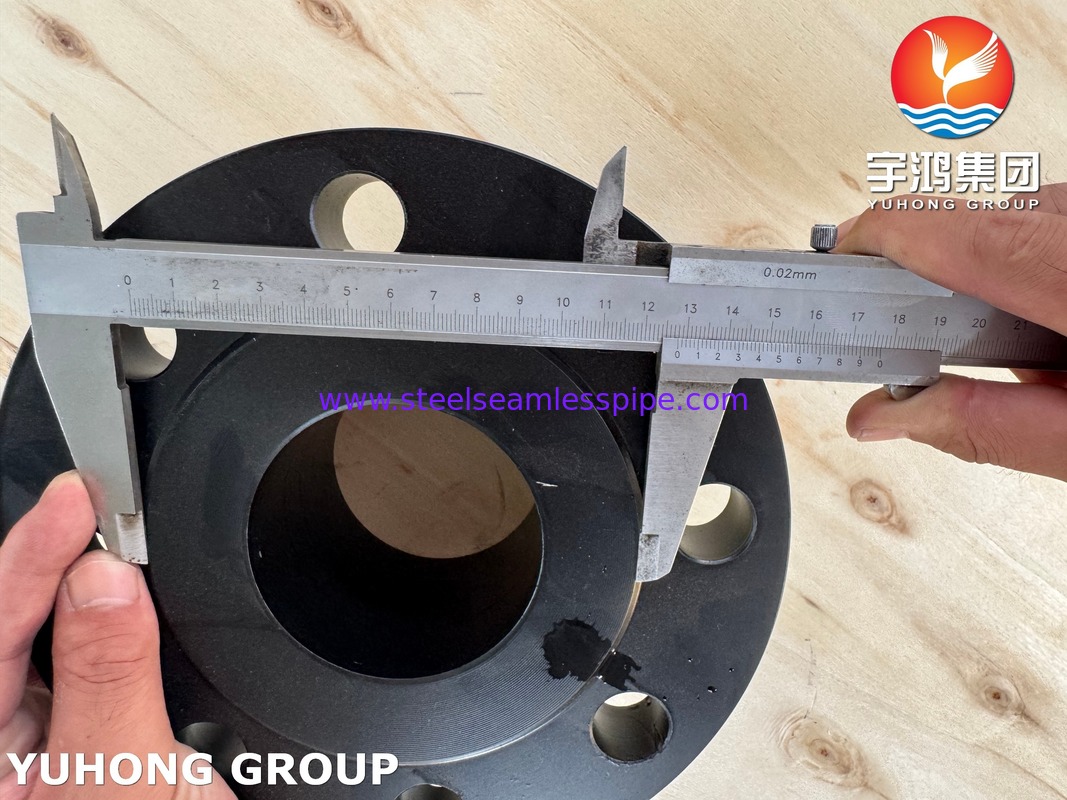

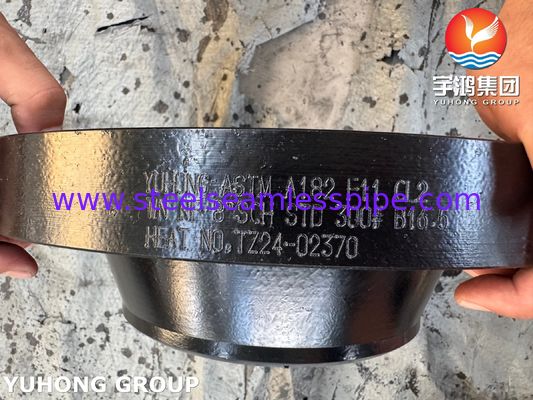

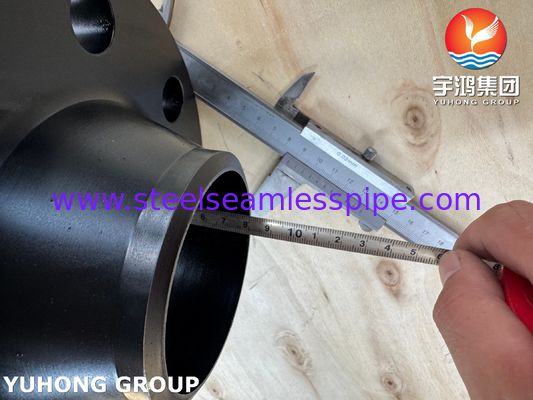

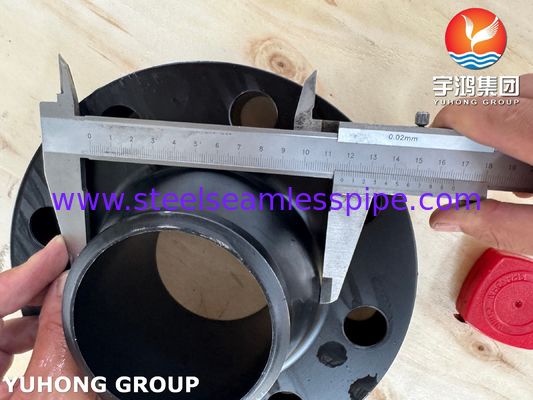

ASTM A182 F11 Cl2 Weld Neck Flange Essential Component for Safe and Operation in Power Generation
The ASTM A182 F11 Cl.2 welding neck flange is a forged pipe connection designed for demanding high-temperature, high-pressure conditions.
It is manufactured from chromium-molybdenum alloy steel (Grade F11) and subjected to a normalizing and tempering (Class 2) heat treatment, resulting in excellent high-temperature strength, creep resistance, and corrosion resistance.
Its signature long tapered neck design ensures seamless butt welding with the pipe, significantly reducing stress concentration.
As a result, it is widely used in core piping systems in thermal power generation, petrochemicals, and refining, serving as a critical component for safe and reliable operation.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F11 | 0.05 - 0.15 | 0.3 - 0.6 | 0.5 - 1 | 0.03 | 0.03 | 1 - 1.5 | 0.044 - 0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F11 Flange | 205 | 415 | 20 |
ASTM A182 F11 Cl2 Flange Application
Power Generation: In fossil fuel and thermal power plants, it is crucial for connecting steam lines, boiler feedwater systems, and high-energy fluid circuits, withstanding high temperatures and pressures.
Petroleum Refining: Used in refining processes such as crude oil distillation, catalytic cracking, and hydrotreating, it resists corrosion from hydrocarbons and hydrogen.
Petrochemical Plants: Facilities used to produce ethylene, ammonia, and methanol handle corrosive chemicals and high temperatures.
