| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, BV, ISO, ASTM, SGS, LR |
| 모델 번호: | ASTM B462 C276 플랜지 |
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 층 나무로 된 사건 / 강한 철 상자 포장 |
| 배달 시간: | 수량에 따라 다릅니다 |
| 지불 조건: | 시야에 t/t, l/c |
| 공급 능력: | 한 달에 100000 PC |
| 이름: | Hastelloy 합금 C276 긴 용접 목 플랜지 | 기준: | ASTM B462 |
|---|---|---|---|
| 재료: | N10665, N10276, NO6022, NO6035, NO6200, 기타 등등. | 테스트: | UT, PT, MT |
| 포장: | 팔레트 ; 층 나무로 된 경우 | 애플리케이션: | 석유, 화학 제품, oil&gas |

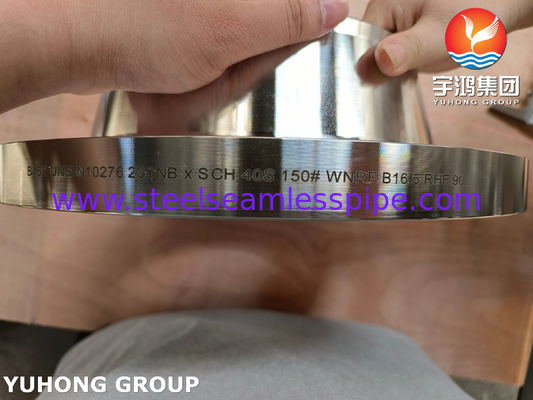

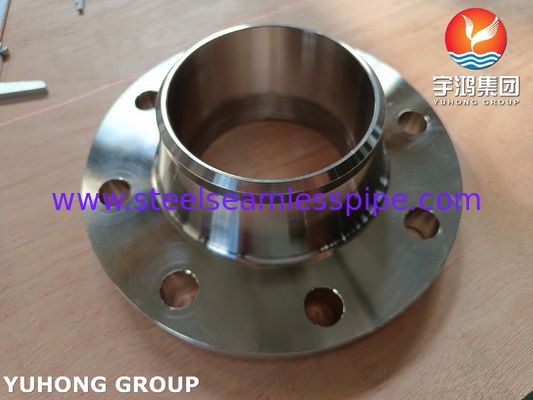

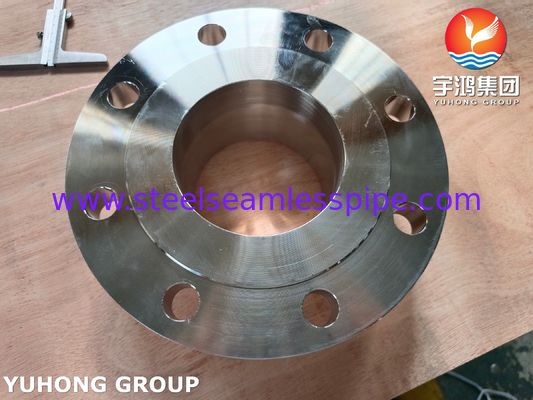

ASTM B462 C276 ( N01276) Hastelloy Alloy Weld Neck Flanges
ASTM B462 specifies forged or rolled nickel and cobalt alloy flanges for use in corrosive environments. Specifically suitable for Hastelloy flanges:
Hastelloy C276, Alloy C276, or UNS N10276 by its unified numbering system. This material's outstanding corrosion resistance is its most prominent feature. It resists a wide range of chemical media.
Weld Neck Flanges connect to piping systems. Their tapered neck design provides optimal stress distribution, with a smooth transition from the flange ring to the pipe wall, significantly reducing stress concentrations.
They are the preferred type for harsh operating conditions involving high pressures, high temperatures, severe thermal cycling, high vibration, and potential piping bending.
Equivalent Grades of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | - | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
Chemical Composition of of ASTM B462 Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
Mechanical properties (Minimum value at 20℃) of Hastelloy C276 Flange Nickel Alloy UNS N10276 Weld Neck Flange
| Tensile Strengthσb/MPa | Yield Strengthσp0.2/MPa | Elongationσ5 /% |
| 690 | 283 | 40 |
Applications
These flanges are used in harsh environments where there is a significant risk of corrosion, and are commonly found in
Chemical Processing Industries (CPI): Reactors, heat exchangers, piping systems, and those handling halogens, acids, and solvents.
Pollution Control and Flue Gas Desulfurization (FGD) Systems: Treat hot, wet flue gases containing sulfides, chlorides, and fluorides.
Pulp and Paper Industry: Used in chloride and chlorine dioxide environments in digesters and bleaching plants.
Pharmaceutical Industry: Process piping requiring extremely high purity and corrosion resistance.
Waste Treatment: Systems handling hazardous chemical waste and acidic waste streams.
Oil and Gas: Used in the harsh environments of highly acidic oil and gas (containing H₂S and CO₂).
