| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | ASTM A403 WP321-S |
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | Ply-Wooden Case /Iron Case |
| 배달 시간: | 15-20 일 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 고객의 요구 사항에 따라 |
| 제품 이름: | 180 ° 팔꿈치/ 둥근 굽힘 | 사양 및 자료: | ASTM A403 WP321-S |
|---|---|---|---|
| 연결 유형: | 버트 접합 | 크기 범위: | DN15-DN1200 (1/2 "-48") |
| 테스트: | 유타, 태평양 표준시, 산, PMI | 표면: | 절인/연마 |
| 애플리케이션: | 석유 화학, 식품 가공, 제약 장비, 첨단 배관 시스템 | ||
| 강조하다: | ASTM A403 WP321-S stainless steel elbow,180° round bend pipeline fitting,austenitic stainless steel pipe elbow |
||

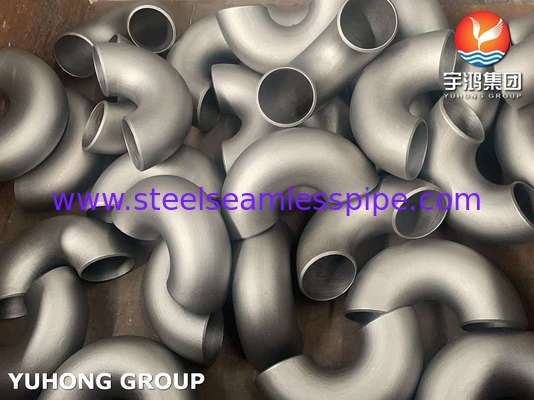

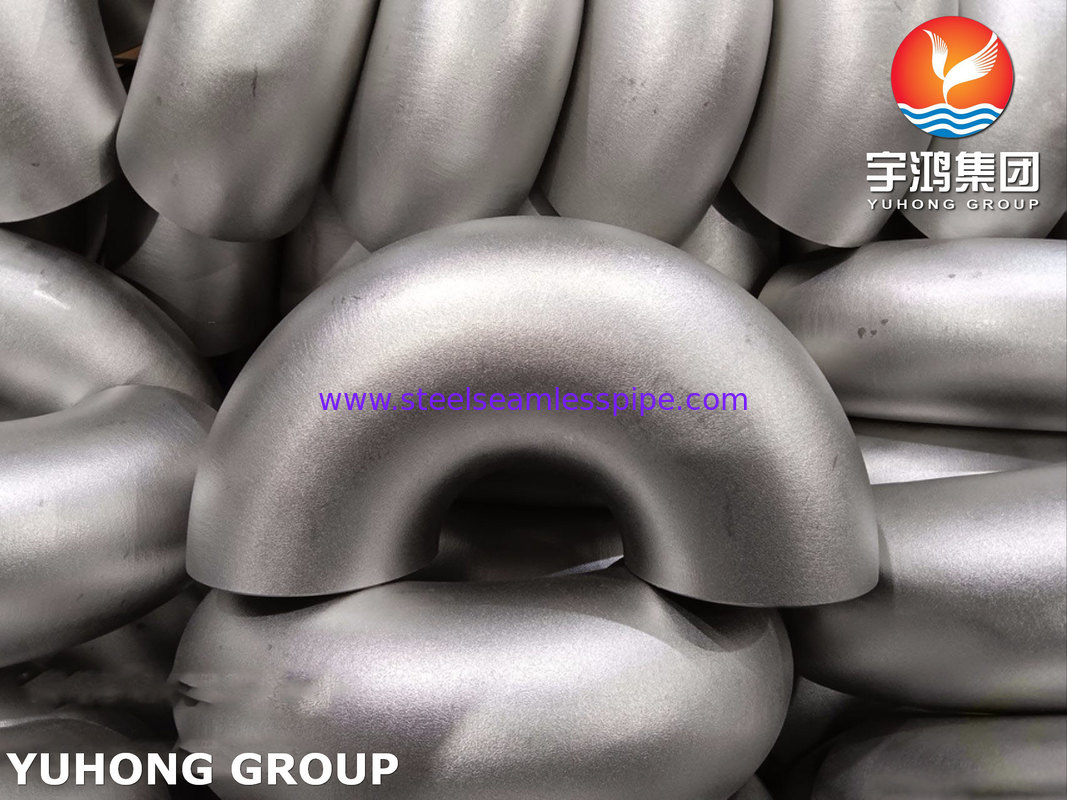

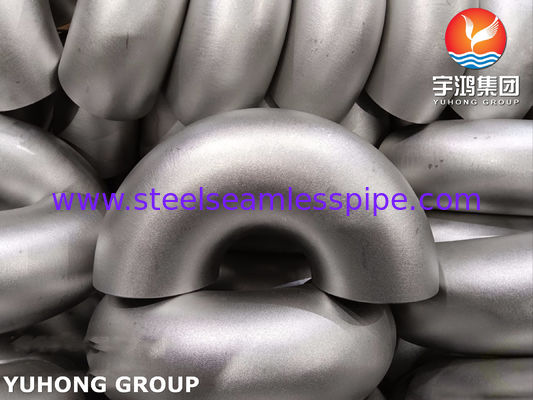

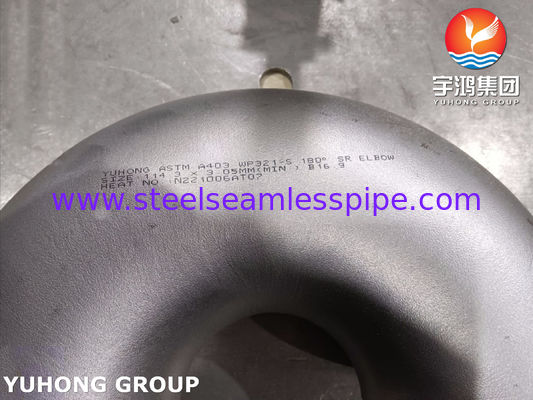

ASTM A403 WP321-S Austenitic Stainless Steel 180° Elbow Round Bend
ASTM A403 WP321-S Austenitic Stainless Steel 180° Elbow is a high-performance piping component designed to change the flow direction of fluids by 180 degrees in industrial pipeline systems. Manufactured from titanium-stabilized austenitic stainless steel (Grade 321), it offers exceptional resistance to intergranular corrosion and high-temperature oxidation, making it ideal for demanding applications in petrochemical, food processing, and high-temperature service environments.
|
Grade WP
|
Grade CR | UNS Designation | Type |
|
WP321
|
CR321
|
S32100
|
321 |
1.Chemical & Mechanical Properties
| ASTM A403 WP321-S Chemical Composition (%) | |||||||
| C | Mn | Si | P | S | Cr | Ni | Ti |
| ≤0.08 | ≤2.00 | ≤1.00 |
≤0.045 |
≤0.030 | 17.0-19.0 | 9.0-12.0 | ≥5×C (min) |
Mechanical Properties
| Property | Standard |
|---|---|
| Tensile Strength | ≥515 MPa |
| Yield Strength (0.2% offset) | ≥205 MPa |
| Elongation | ≥28% |
|
Solution Anneal Temperature
|
1040℃ |
Key Mechanical Characteristics
2. Key Adventages
(1) Superior intergranular corrosion resistance
(2) Titanium stabilization for high-temp stability
(3) Surface Finish: Pickled/Polished available
(4) Seamless/Welded manufacturing options
(5) Temperature Range: -196°C to 800°C
3. Key Applications
Petrochemical Industry
Used in high-temperature and high-pressure piping systems for refineries and chemical plants
Particularly suitable for sulfur-containing media environments
Food Processing Industry
Hygienic piping connections meeting sanitary standards
Used in dairy and beverage production equipment
Pharmaceutical Industry
Critical component for clean piping systems
Complies with GMP requirements for fluid transfer
Power Generation Industry
High-temperature steam pipelines in thermal power plants
Auxiliary system piping in nuclear power plants
Shipbuilding
Seawater-resistant piping systems
Engine exhaust systems
Special Application Notes
Suitable for applications with rapid temperature changes
Recommended for oxidizing environments at 400-800°C
Not recommended for reducing acid environments
Can be used in cryogenic conditions down to -196°C
