| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| 모델 번호: | ASTM B177 C70600 |
| 최소 주문 수량: | 500kgs |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라스틱 캡과 층 나무로 된 케이스 /Iron Case/ 번들 |
| 배달 시간: | 10-90 일 |
| 지불 조건: | L/C, T/T |
| 공급 능력: | 고객의 요구에 따르면 |
| 지지판: | ASTM B177 C70600 | 크기: | 다양 한 크기 |
|---|---|---|---|
| 두께: | 사용자 정의 | 열 교환기 유형: | 원통 다관형 |
| 적용: | 산업 | 차원: | ASTM, ANSI, API, JIS, ASME, DIN 등 |
| 강조하다: | Heat Exchanger Square Tubesheet,C70600 Square Tubesheet,ASTM B177 Square Tubesheet |
||

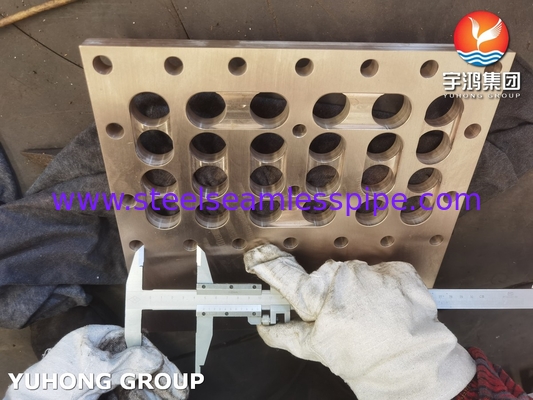

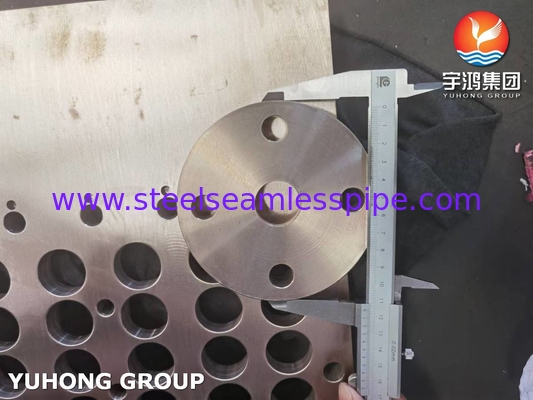

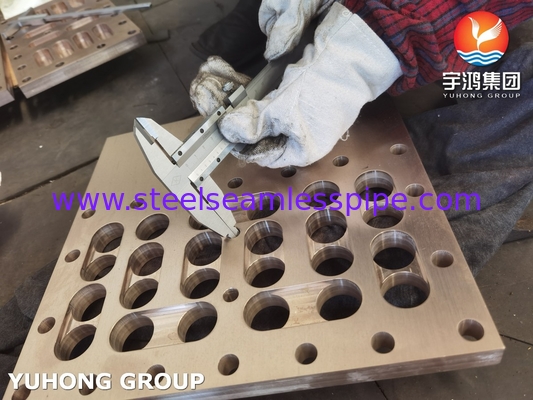

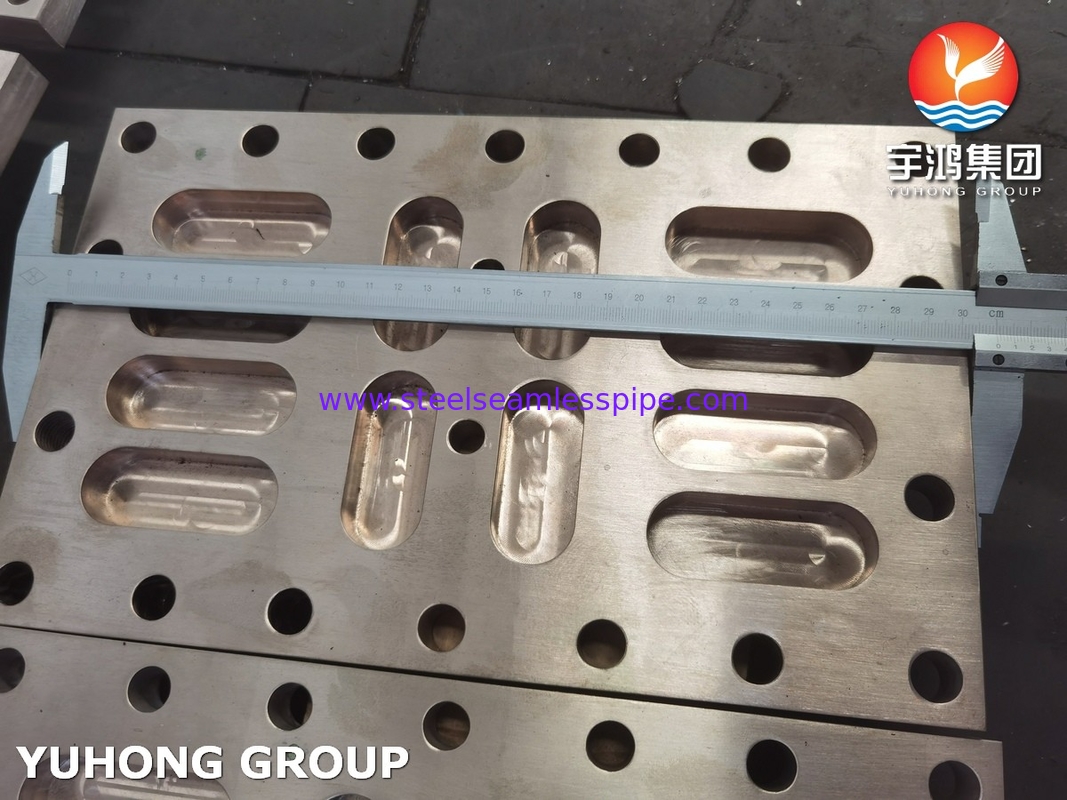

C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.
C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.
| STANDARD | WERKSTOFF NR. | UNS |
| Cu-Ni 90/10 | 2.0872 | C70600 |
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
Applications:
Shipbuilding
Power plants
Desalination plants
HVAC systems
