| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ISO9001, PED, ABS, DNV, BV, LR, GL |
| 모델 번호: | ASTM B111 C44300 원활한 구리 합금 튜브 |
| 최소 주문 수량: | 500kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 강철 스트랩과 함께 번들로 묶이고 플라스틱 엔드 캡과 PE 필름으로 보호한 다음 항해에 적합한 훈증 없는 합판 케이스에 포장합니다. |
| 배달 시간: | 수량에 따라 다름 |
| 지불 조건: | 보자마자 T/T, L/C |
| 공급 능력: | 달 당 1000 톤 |
| 재료 등급: | UNS C44300 해군성 황동 | 제품 유형: | 원활한 황동 튜브 |
|---|---|---|---|
| 기준: | ASTM B111 / ASME SB111 | 외경(OD): | 6mm – 150mm(맞춤형 가능) |
| 벽 두께 (WT): | 0.5mm – 8mm | 성질: | 단련 (O61) |
| 제조공정: | 냉간 압연 | 애플리케이션: | 열교환기, 콘덴서, 발전소, 담수화 시스템 |

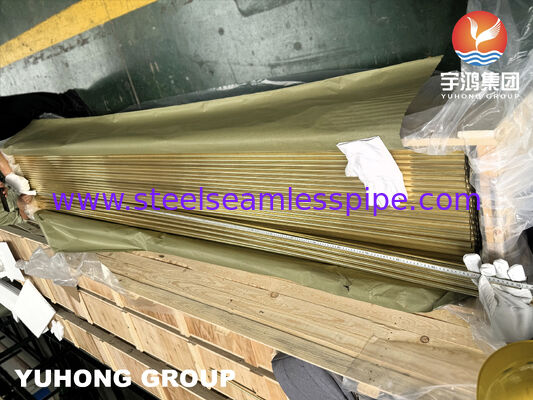

ASTM B111 C44300 Admiralty Brass Seamless Tube Supplier | Heat Exchanger Tubes
Product Overview
High-Performance ASTM B111 C44300 Admiralty Brass Tubes for Heat Transfer Applications.
ASTM B111 C44300 Admiralty Brass Tube is a seamless copper alloy tube widely used in condensers, heat exchangers, evaporators and other heat transfer equipment. The alloy contains approximately 70% copper, 29% zinc and a small addition of tin, providing improved resistance to dezincification and corrosion in fresh water, mildly saline water and industrial cooling systems.
Manufactured in accordance with ASTM B111, C44300 tubes offer excellent thermal conductivity, good cold-working properties and reliable mechanical strength for pressure-containing heat transfer applications.
Technical Specifications
ASTM B111 C44300 Tube Specifications
|
Item |
Specification |
|---|---|
|
Product Name |
ASTM B111 C44300 Admiralty Brass Tube |
|
Standard |
ASTM B111 / ASME SB111 |
|
Material Grade |
UNS C44300 |
|
Manufacturing Process |
Seamless Cold Drawn |
|
Outside Diameter |
6 mm – 150 mm |
|
Wall Thickness |
0.5 mm – 8 mm |
|
Length |
Up to 12 m or customized |
|
Temper |
Annealed (O60), Light Drawn (H55), As Required |
|
Surface Finish |
Bright Annealed, Pickled, Clean Surface |
|
Ends |
Plain End |
|
Shape |
Round |
|
Inspection |
PMI, Eddy Current Test, Hydrostatic Test, Dimensional Inspection, Visual Inspection |
|
Packaging |
Wooden Cases, Bundles, Export Packing |
Chemical Composition
Chemical Composition of C44300 Admiralty Brass
|
Element |
Content (%) |
|---|---|
|
Copper (Cu) |
70.0 – 73.0 |
|
Zinc (Zn) |
Balance |
|
Tin (Sn) |
0.90 – 1.20 |
|
Lead (Pb) |
Max 0.07 |
|
Iron (Fe) |
Max 0.06 |
|
Others |
According to ASTM B111 |
Mechanical Properties
|
Property |
Typical Value |
|---|---|
|
Tensile Strength |
≥ 310 MPa (depending on temper) |
|
Yield Strength |
According to temper |
|
Elongation |
According to ASTM B111 |
|
Hardness |
According to temper |
Mechanical properties vary depending on temper and tube dimensions.
Features
Key Features of ASTM B111 C44300 Tube
The addition of approximately 1% tin improves resistance to dezincification, making C44300 suitable for freshwater cooling systems and mildly marine environments.
The copper-rich composition provides efficient heat transfer for condensers, heat exchangers and cooling equipment.
The seamless structure supports bending, expanding and fabrication processes commonly required during heat exchanger manufacturing.
Manufactured to ASTM B111 dimensional and quality requirements, the tubes are suitable for pressure-containing heat transfer equipment.
Suitable for fabrication including cutting, tube expansion and end forming.
Typical Applications
Industries and Applications
ASTM B111 C44300 Admiralty Brass Tubes are widely used in:
Shell & Tube Heat Exchangers
Surface Condensers
Power Generation Plants
Petrochemical Plants
Chemical Processing Equipment
HVAC Heat Transfer Systems
Desalination Plants
Marine Cooling Systems
Shipbuilding
Offshore Cooling Equipment
Sugar Industry
Evaporators
Inspection and Testing
Quality Control: Every production batch can be inspected according to customer requirements. Available inspections include:
Eddy Current Test
Hydrostatic Test
PMI (Positive Material Identification)
Dimensional Inspection
Visual Inspection
Mechanical Property Test
Chemical Composition Analysis
Flattening Test
Flaring Test
Surface Quality Inspection
Packaging
Standard Export Packaging
Plastic End Caps
PVC Wrapped Bundles
Waterproof Packing
Wooden Cases
Fumigation-Free Export Boxes
Customer-Specified Packaging
Frequently Asked Questions(FAQ)
It is mainly used for heat exchangers, condensers, evaporators and cooling systems requiring efficient heat transfer and good corrosion resistance.
The tin addition improves resistance to dezincification, making C44300 more suitable for cooling water and condenser service than standard brass grades.
C44300 performs well in fresh water and mildly saline water. For high-velocity seawater or more aggressive marine environments, copper-nickel alloys such as C70600 or C71500 are generally preferred due to their superior seawater corrosion resistance.
Yes. Outside diameter, wall thickness, length and temper can be manufactured according to project requirements.
Why Choose YUHONG ASTM B111 C44300 Tubes
Manufactured in accordance with ASTM B111 / ASME SB111
Seamless cold drawn process for dimensional consistency
Available in multiple tempers and customized dimensions
Suitable for condenser and heat exchanger fabrication
Comprehensive inspection options including eddy current and hydrostatic testing
Export-ready packaging for international projects
