| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| 모델 번호: | ASME SB171 C70600 |
| 최소 주문 수량: | 500kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 10-90 일 |
| 지불 조건: | 신용장, 전신환 |
| 공급 능력: | 고객의 요청에 따라 |
| 기준: | ASME SB171 | 재료: | 니켈 합금강 |
|---|---|---|---|
| 재료 등급: | C70600 | 크기: | 맞춤형 |
| 유형: | 반지 | 그림: | 맞춤형 |
| 강조하다: | ASME SB171 copper nickel alloy ring,C70600 seawater corrosion resistant ring,copper nickel alloy seawater ring |
||

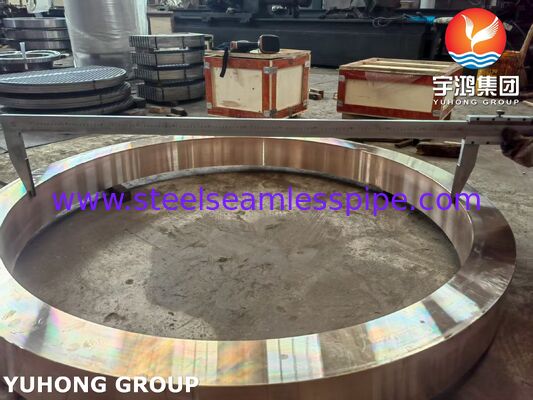

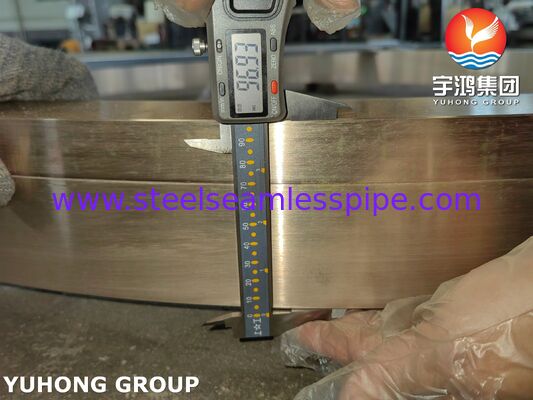

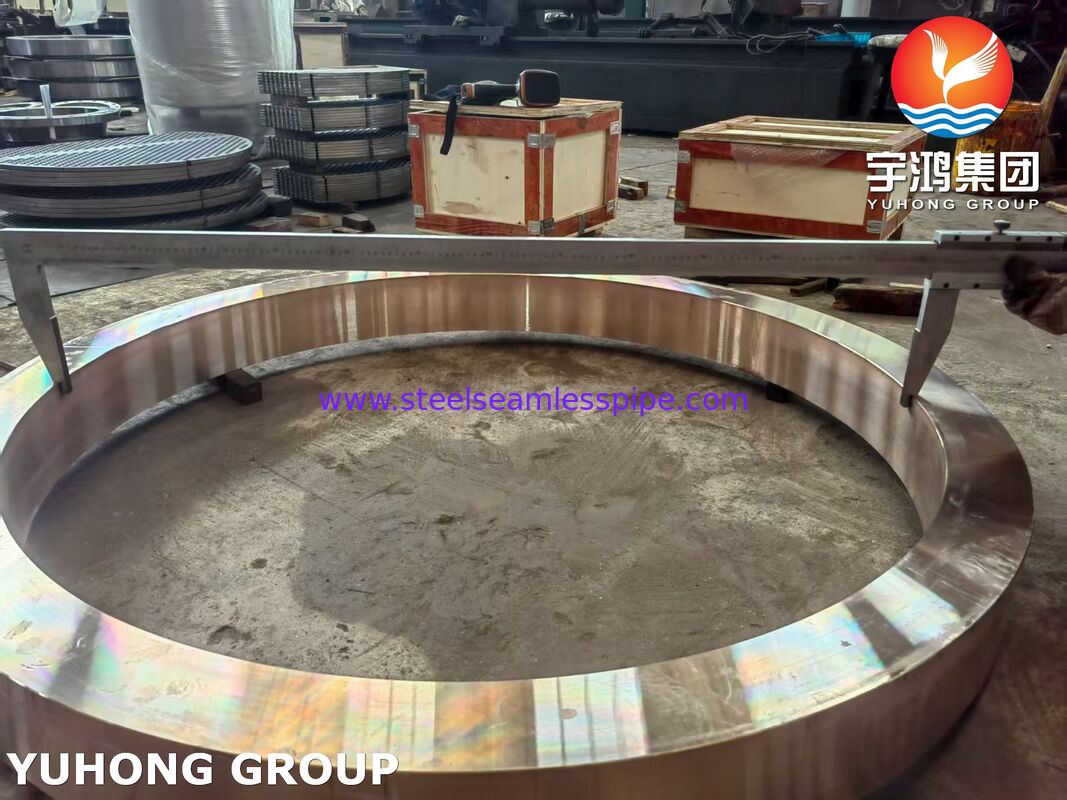

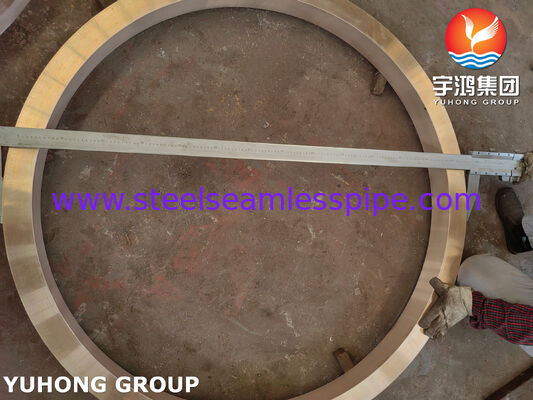

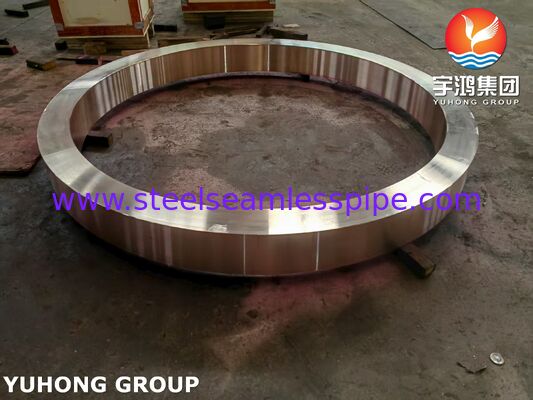

ASME SB171 C70600 Copper Nickel Alloy Ring For Seawater Corrosion Resistance
These ring-shaped industrial components, conforming to ASME SB171 standards and made of seawater-resistant C70600 copper-nickel alloy (90-10 CuNi), are primarily used for sealing or connecting in harsh environments such as marine and desalination plants.
copper-nickel alloy
90-10 copper-nickel alloy (C70600) is a high-performance corrosion-resistant alloy with copper as the base and about 10% nickel and 1-2% iron added.
Its core characteristics are extremely excellent resistance to seawater corrosion, resistance to marine organism adhesion, and good machinability. It is one of the preferred materials for pipelines and key components in ships, seawater desalination plants and marine engineering.
Chemical Composition Of C70600
| Chemical Composition % | Cu | Pb | Zn | Fe | Ni | Mn |
| Rem. | 0.02 | 0.5 | 1.0-1.8 | 9.0-11.0 | 1.0 |
Physical Property Of C70600
| Properties | Metric | Imperial |
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
Mechanical Property Of C70600
| Properties | Metric | Imperial |
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42% | 42% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
Application:
Marine and Marine Engineering: Flange sealing rings for seawater piping systems, pump and valve connections.
Desalination Plants: Connections and sealing components for heat exchangers and evaporator modules.
Coastal Power Plants: Sealing components for condensers and cooling water systems.
Chemical and Oil & Gas Processing: Equipment connections for handling corrosive media (especially chloride-containing media).
