| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | INCOLOY800, 인콜로이 800H, 인콜로이 800HT, 인콜로이 825 |
| 최소 주문 수량: | 100KGS |
|---|---|
| 가격: | 협상 가능 |

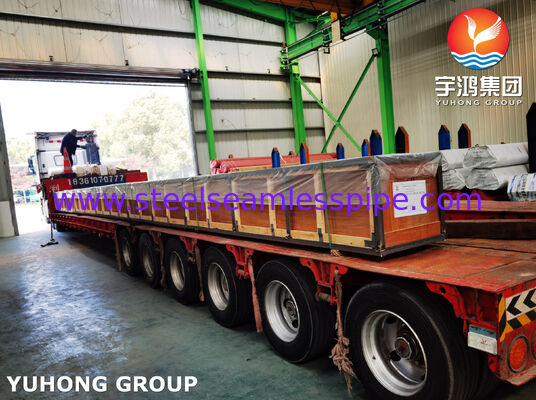

| 포장 세부 사항: | 플라스틱 캡 / 우븐과 층 나무로 된 케이스 /Iron Case/ 번들 건 |
| 배달 시간: | 수량에 따라 다릅니다 |
| 지불 조건: | T/T,L/C |
| 공급 능력: | 한 달에 1000 톤 |

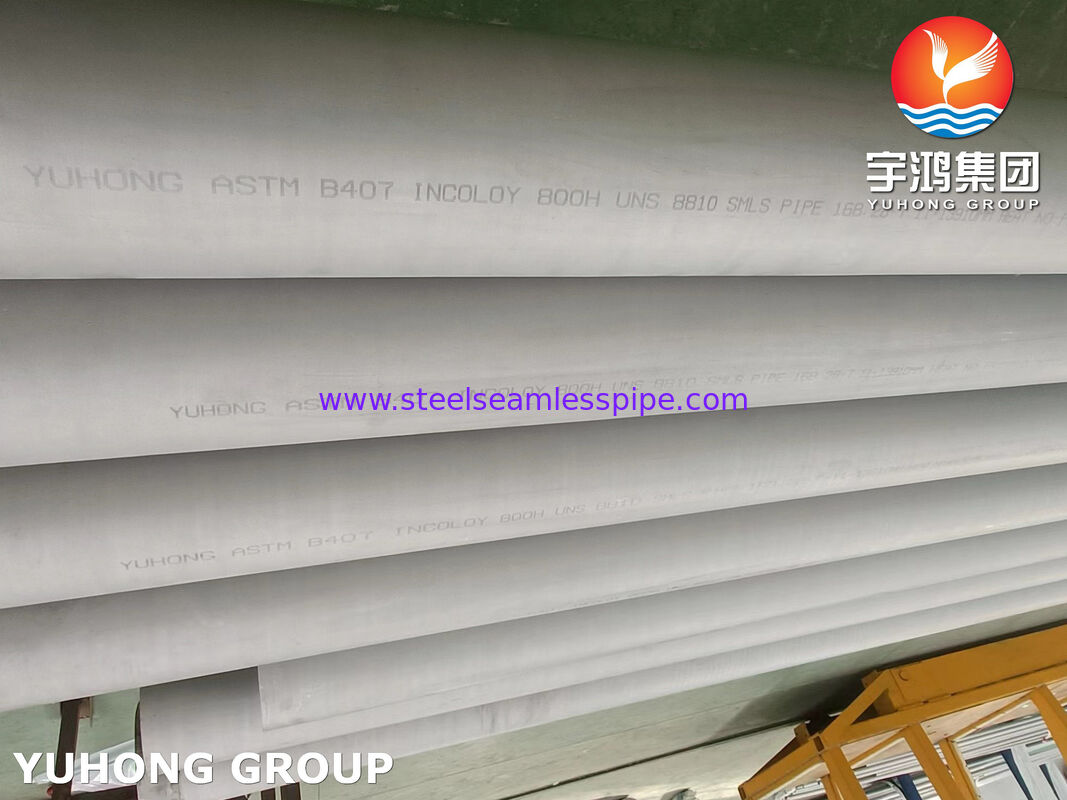

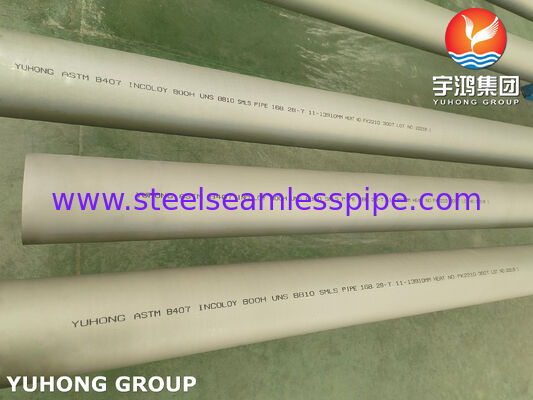

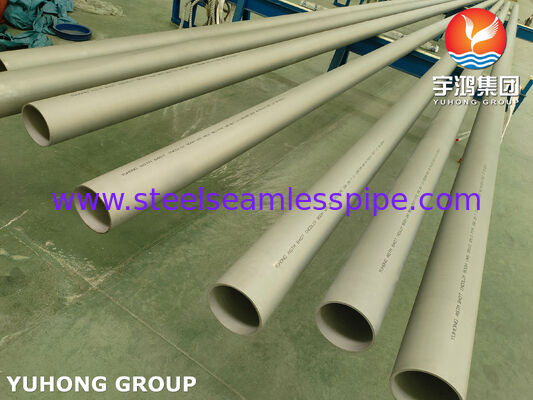

| 강조하다: | High-temperature Service Nickel Alloy Seamless Pipe,ASTM B407 Standard Incoloy 800H Pipe,Creep and Rupture Resistance UNS N08810 Pipe |
||
|---|---|---|---|
| Element | Composition (% by weight) | Role/Effect |
|---|---|---|
| Nickel (Ni) | 30.0 - 35.0 | Base element; provides high-temperature strength, ductility, and resistance to reducing atmospheres |
| Chromium (Cr) | 19.0 - 23.0 | Imparts oxidation and corrosion resistance by forming protective Cr₂O₃ scale |
| Iron (Fe) | Balance (approx. 39.5% min) | Balances cost and contributes to alloy strength |
| Carbon (C) | 0.05 - 0.10 | Carefully controlled to enhance high-temperature creep strength |
| Aluminum (Al) | 0.15 - 0.60 | Improves high-temperature oxidation resistance and strengthens the alloy |
| Titanium (Ti) | 0.15 - 0.60 | Works with Al to form strengthening phases and stabilize structure |
| Manganese (Mn) | ≤ 1.50 | Aids in deoxidation during manufacturing |
| Silicon (Si) | ≤ 1.00 | Improves oxidation resistance |
| Copper (Cu) | ≤ 0.75 | - |
| Sulfur (S) | ≤ 0.015 | Controlled impurity to maintain weldability and hot workability |
| Property | Minimum Value | Condition / Notes |
|---|---|---|
| Tensile Strength | 450 MPa (65,000 psi) | For hot-finished annealed or cold-worked annealed material |
| Yield Strength (0.2% Offset) | 170 MPa (25,000 psi) | - |
| Elongation | 30% | - |
| Density | 8.0 g/cm³ | - |
| Melting Range | 1350 - 1400 °C | - |
담당자: Vladimir
전화 번호: +8618957451975
팩스: 0086-574-88017980
