| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | ASME SB111 C71500 |
| 최소 주문 수량: | 100KGS |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 15-20 근무일 |
| 지불 조건: | , l/c, t/t |
| 공급 능력: | 고객의 요청에 따라 |
| 제품명: | 원활한 구리 Nickle 합금 강철 튜브 | 사양: | ASME SB111 |
|---|---|---|---|
| 재료: | C71500 | 유형: | 원활한 |
| 표면: | 밝은 어닐링 / 연마 | 어플리케이션: | 열교환기, 배관, 해수처리 |
| 강조하다: | ASME SB111 C71500 copper-nickel alloy tube,seawater corrosion resistant copper alloy tube,70-30 copper-nickel seamless steel tube |
||

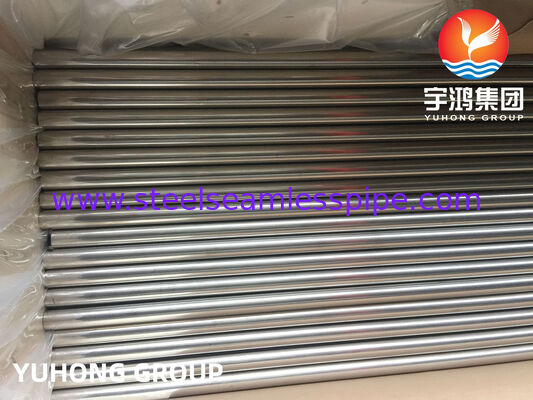

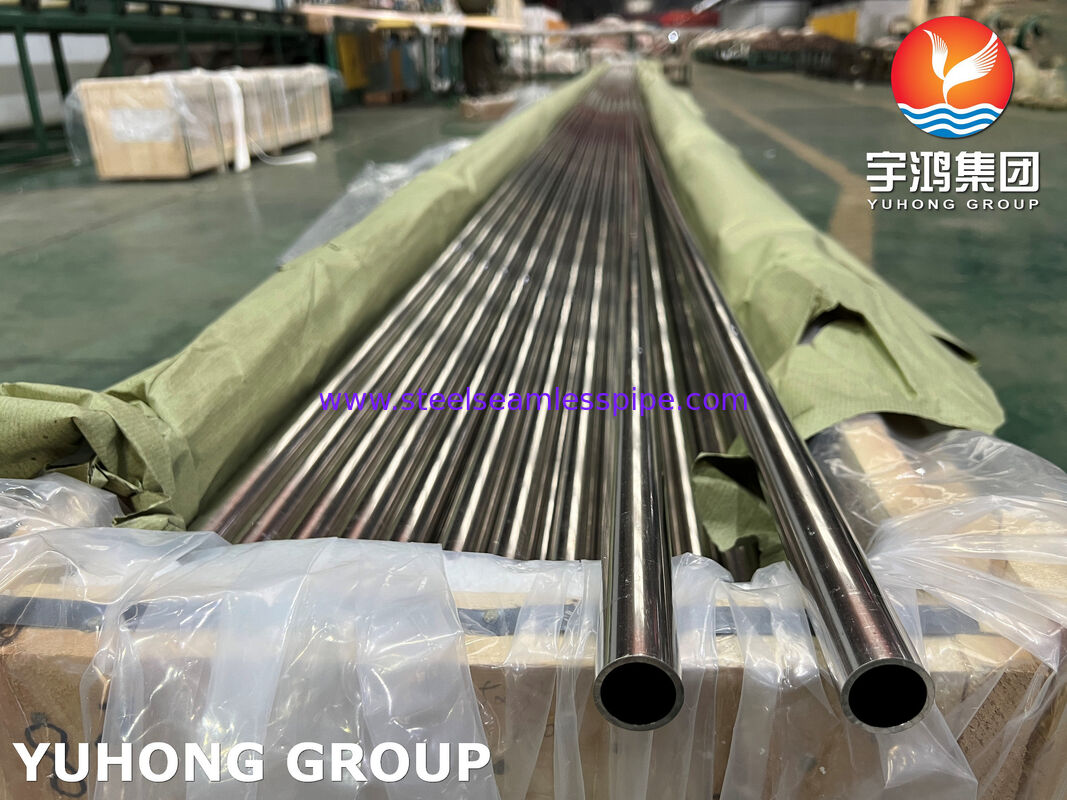

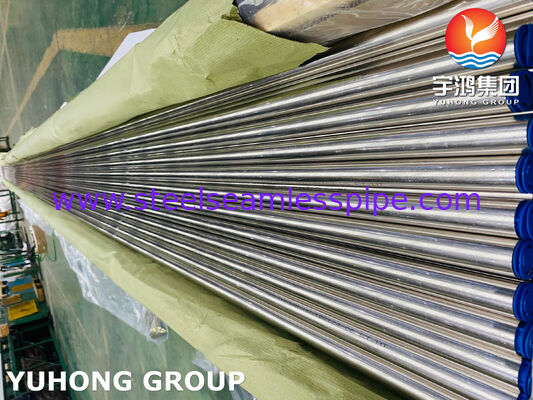

ASME SB111 C71500 SMLS 70-30 Copper-Nickel Alloy Steel Tube, Seawater Corrosion Resistance
ASME SB111 C71500 is a seamless 70-30 copper-nickel alloy tube renowned for its superior seawater corrosion resistance. The addition of nickel and iron enables the formation of a dense, stable protective surface film, effectively resisting pitting, impingement attack, and biofouling. Designed for harsh marine environments, it is the ideal choice for heat exchanger tubing in ship condensers, power plant cooling systems, and desalination plants.
1.Chemical & Mechanical Properties
| ASME SB111 C71500 Chemical Composition (%) | |||||
| Cu | Ni | Pb | Fe | Zn | Mn |
| Rem | 29.0%-33.0% | ≤0.05% | 0.4%-1.0% | ≤1.0% | ≤1.0% |
Mechanical Properties
| Code |
Name
|
Tensile Strength
min ksi
|
Yield Strength
min ksi
|
Elongation
in 2 in.,min %
|
|
O61
|
annealed
|
52 | 18 | |
|
HR50 Wall thicknesses up to 0.048 in., incl
|
drawn and stress-relieved
|
72 | 50 | 12 |
|
HR50
Wall thicknesses over 0.048 in.
|
drawn and stress-relieved
|
72 | 50 | 15 |
Physical properties
| Thermal Conductivity | Coefficient of Thermal Expansion | Modulus of Elasticity | Density |
| ~29 W/m·K | 16.2 x 10⁻⁶ /K | ~156 GPa | 8.94 g/cm³ |
2. Key Adventages
Exhibits excellent resistance to corrosion in seawater and brackish water, effectively resisting pitting, crevice corrosion, and stress corrosion cracking.
The alloy surface inhibits the attachment and growth of marine organisms (such as barnacles, algae), reducing maintenance costs and maintaining heat exchange efficiency.
Possesses high strength, good toughness, and ductility, making it easy for fabrication processes such as bending, welding, and forming.
Capable of providing decades of reliable, trouble-free service life under correct operating conditions.
3. Key Applications
