| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | ASTM A790 UNS S32205 이음매 없는 이중 강관 |
| 최소 주문 수량: | 1 PC |
|---|---|
| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 7일 |
| 지불 조건: | 신용장, 전신환 |
| 기준: | ASTM A790, ASME SA790 | 등급: | 듀플렉스강 UNS S31803, S32750, S32205 |
|---|---|---|---|
| OD: | 이음새가 없 - 1/2 NB 내지 18 NB, 용접된 / ERW 1 NB 내지 16 NB | wt: | SCH160에 대한 SCH10 |
| 길이: | 단일 무작위, 이중 무작위 및 컷 길이 | 끝: | 평범한 끝, 경사 끝 |
| 유형: | 원활하거나 용접 | 포장: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 어플리케이션: | 발전소, 원유와 가스 정유, 해양 환경, 공해 방지 설비 | ||
| 강조하다: | ASTM A790 Duplex Steel 2205 pipe,UNS S32205 seamless stainless pipe,Duplex stainless steel pipe with warranty |
||

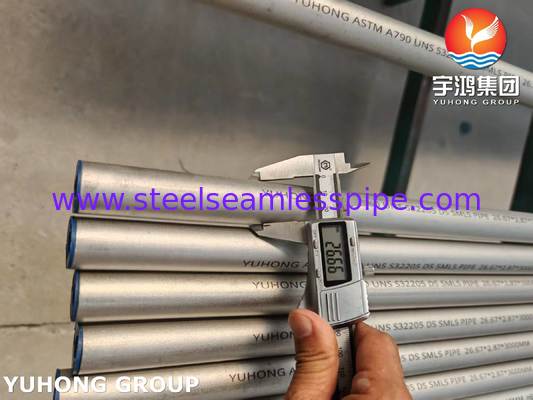

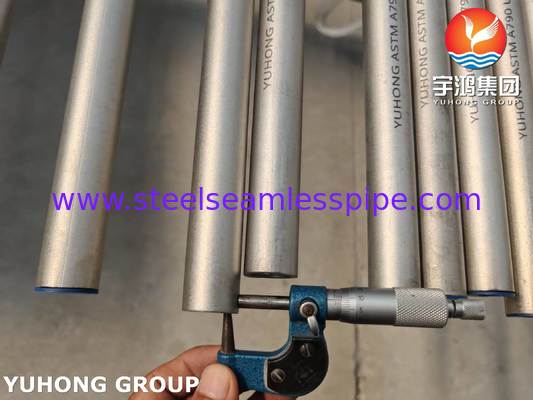

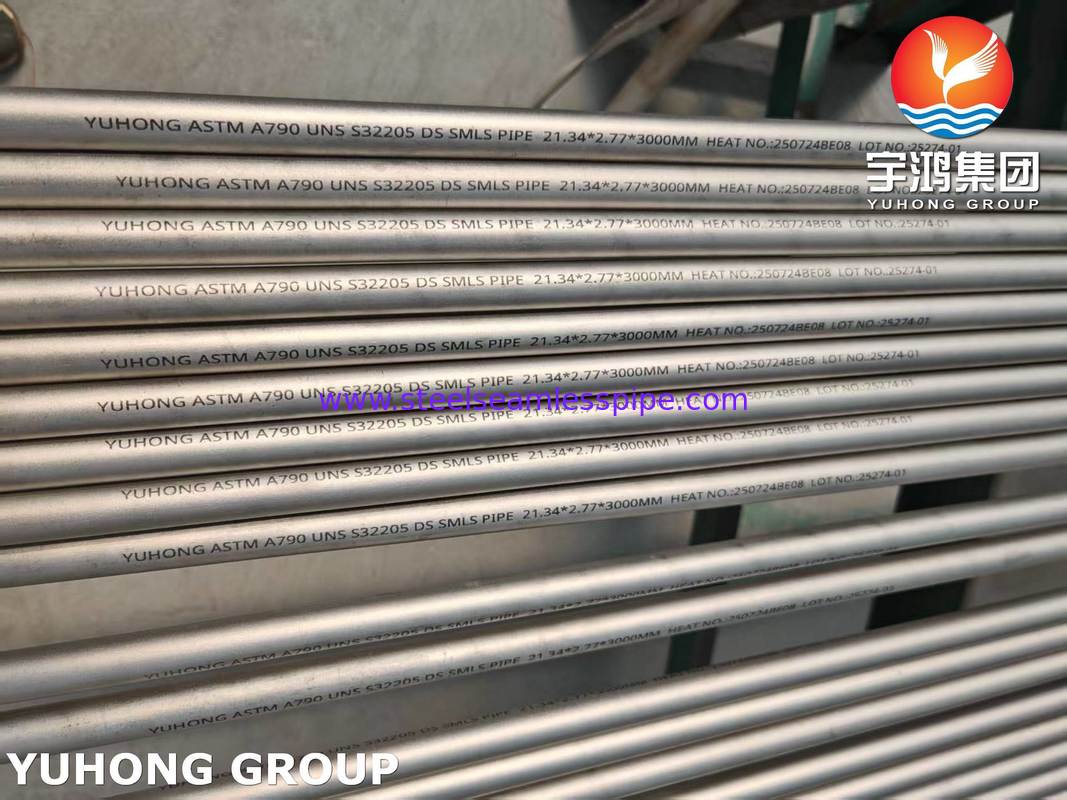

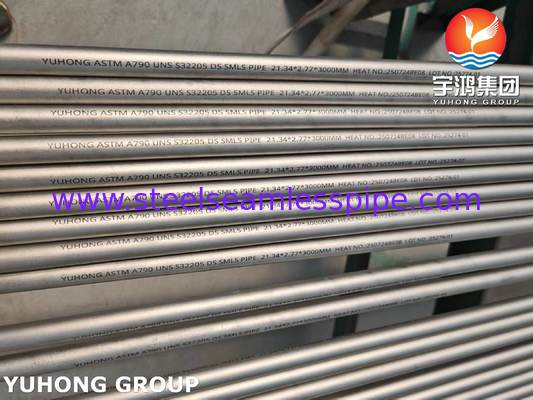

ASTM A790 Duplex Steel Gr.2205 / UNS S32205 Pickled and Annealed Seamless Pipe
ASTM A790 Gr 2205 / UNS S32205 Seamless Pipe is a premium, high-performance material that offers an outstanding combination of very high strength and excellent corrosion resistance, particularly against pitting, crevice corrosion, and chloride stress corrosion cracking. Its "duplex" structure makes it a cost-effective solution for some of the most challenging environments in the oil & gas, chemical, and marine industries, often bridging the gap between standard austenitic steels and more expensive nickel alloys. Proper fabrication techniques are paramount to preserving its superior properties.
Here are some key features:
Equivalent Grade of duplex 2205
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 2205 | S31803 / S32205 | 318S13 | - | 1.4462 | X2CrNiMoN22-5-3 | 2377 | SUS 329J3L |
Chemical Composition of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 2205 (UNS S31803) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 21.0 - 23.0 | 2.5 - 3.5 | 4.5 - 6.5 | 0.08 - 0.20 |
| 2205 (UNS S32205) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 22.0 - 23.0 | 3.0 - 3.5 | 4.5 - 6.5 | 0.14 - 0.20 |
Mechanical Composition of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes
| Grade | Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness | |
| Rockwell C (HR C) | Brinell (HB) | ||||
| UNS S32205 / 2205 | 621 | 448 | 25 | 31 max | 293 max |
Physical Properties of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes
| Grade | Density (kg/cm3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C ( J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| UNS S32205 / 2205 | 7.8 | 190 | 13.7 | 14.2 | - | 19 | - | 418 | 850 |
ASTM A790 UNS 32205 Duplex Stainless Steel Seamless Pipes
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Specification | ASTM A789, ASTM A790, ASTM A928, ASME SA789, ASME SA790, ASME SA928 |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Grades | UNS S32205, UNS S31803, UNS S32750, UNS S32760 |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Outer Diameter Size | Seamless - 1/2" NB TO 18" NB, Welded / ERW- 1" NB TO 16" NB |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Wall Thickness | Schedule 10 to Schedule 160 |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Length | Single Random Length, Double Random Length And Customize Size. |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Ends | Plain Ends / Beveled Ends |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw, Bright Annealed |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Applications
