| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | ASTM A213 T9 |
| 최소 주문 수량: | 500kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 나무로 된 케이스 / 양철 상자 / 번들에게 플라스틱 캡을 퍼부으세요 |
| 배달 시간: | 수량에 따라 다릅니다 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 고객 요구 사항에 따르면 |
| 제품 이름: | 합금 강철 원활한 튜브 | 사양: | ASTM A213 / ASME SA213 |
|---|---|---|---|
| 재료: | T9 | 유형: | 원활한 |
| 끝: | 평범한 끝, 경사 끝 | 애플리케이션: | 보일러, 과열기, 열교환기 |
| 강조하다: | ASTM A213 T9 alloy steel tube,seamless boiler superheater tube,alloy steel tube with warranty |
||

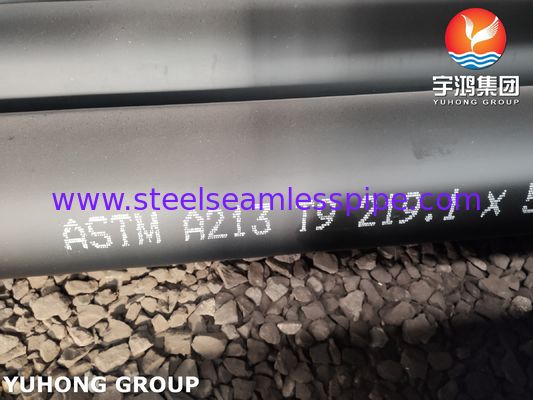

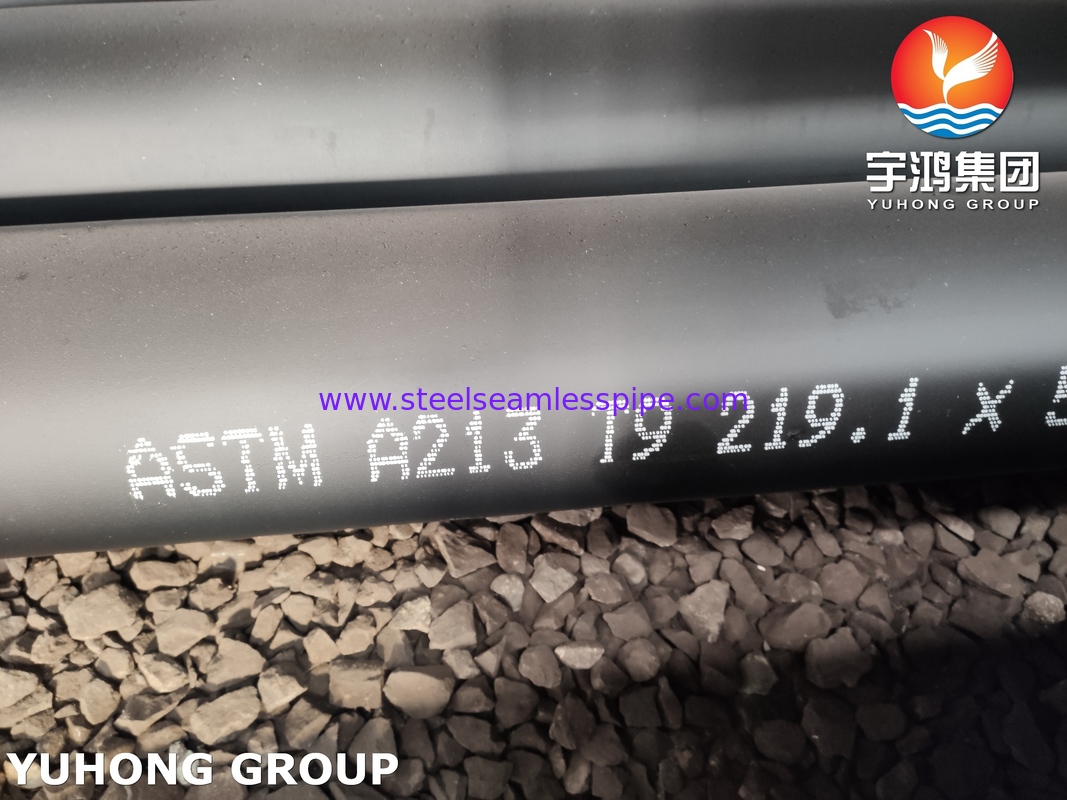

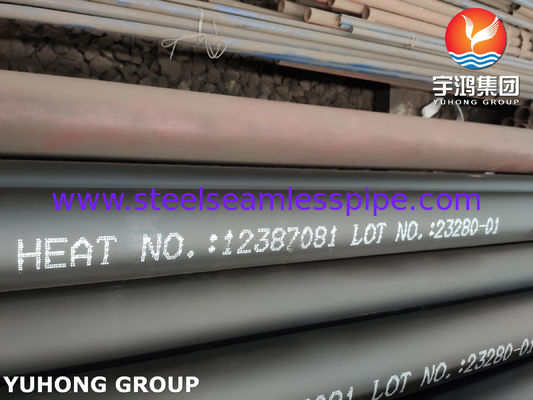

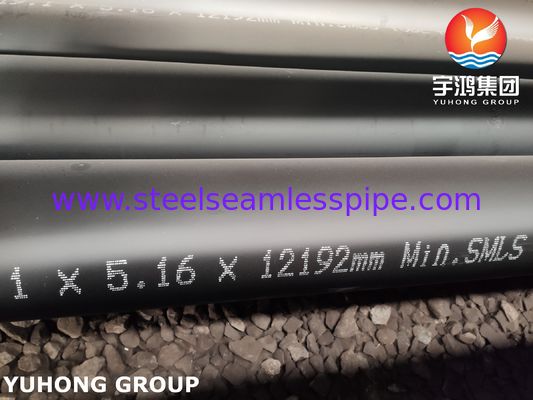

ASTM A213 T9 Alloy Steel Seamless Tube for Boiler Superheater
ASTM A213 T9 is a standard specification for seamless ferritic and austenitic alloy steel boiler, superheater, and heat-exchanger tubes. The T9 grade is a specific chromium-molybdenum alloy steel known for its excellent elevated temperature strength and oxidation resistance.
1. Key Characteristics & Applications
Primary Use: These tubes are primarily designed for high-temperature service environments, making them ideal for:
Power Generation Boilers: Superheater and reheater tubes.
Fossil Fuel Plants: Heat exchangers, condenser tubes, and piping systems.
Petrochemical Industry: Components in refineries and chemical processing equipment where resistance to corrosion and heat is critical.
Main Advantages:
Good Elevated Temperature Strength: Maintains structural integrity and resists creep (deformation under long-term stress at high temperatures).
Oxidation Resistance: The chromium content provides a protective oxide layer, preventing scaling and degradation in oxidizing atmospheres.
Weldability and Formability: Can be welded and fabricated using standard procedures suitable for chromium-molybdenum steels.
2. Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 - 0.60 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.025 max |
| Silicon (Si) | 0.25 - 1.00 |
| Chromium (Cr) | 8.00 - 10.00 |
| Molybdenum (Mo) | 0.90 - 1.10 |
3. Mechanical Properties
| Property | Requirement |
|---|---|
| Tensile Strength | ≥ 415 MPa (60 ksi) |
| Yield Strength | ≥ 205 MPa (30 ksi) |
| Elongation | ≥ 30% (in 2 inches or 50mm) |
4. Manufacturing Standard
The tubes are manufactured as seamless (without a weld seam) through a process like extrusion or piercing, ensuring uniformity and strength throughout the tube's circumference. This makes them highly reliable for high-pressure applications.
