| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| 모델 번호: | ASTM A376 TP347H |
| 최소 주문 수량: | 100kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라스틱 캡 / 우븐과 층 나무로 된 케이스 /Iron Case/ 번들 건 |
| 배달 시간: | 수량에 따라 다릅니다 |
| 지불 조건: | l/c, t/t |
| 공급 능력: | 한 달에 1000 톤 |
| 재료 등급: | ASTM A376 TP347H / ASME SA376 TP347H | 주요 용도: | 과열기 튜브 / 개혁 튜브 / 보일러 시스템 |
|---|---|---|---|
| 처리 기술 =: | 차가운 / 핫 페이닝 된 매끄러운 | 동등한 표준: | UNS S34709, EN 1.4912, DIN X8CRNINB16-13 |
| ndt 테스트: | 100% UT (초음파) + 정수압 테스트 | 인증 준수: | ASTM A376, ASME SA376, ISO 15510, NACE MR0175 |

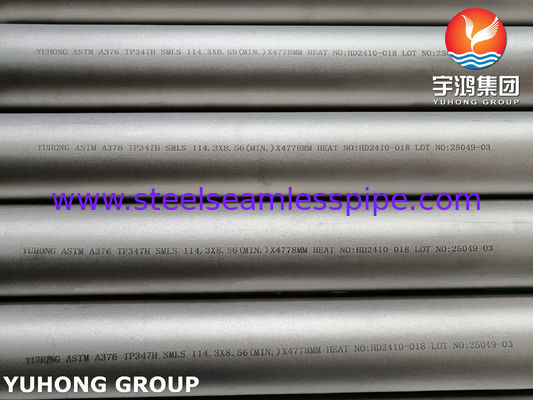

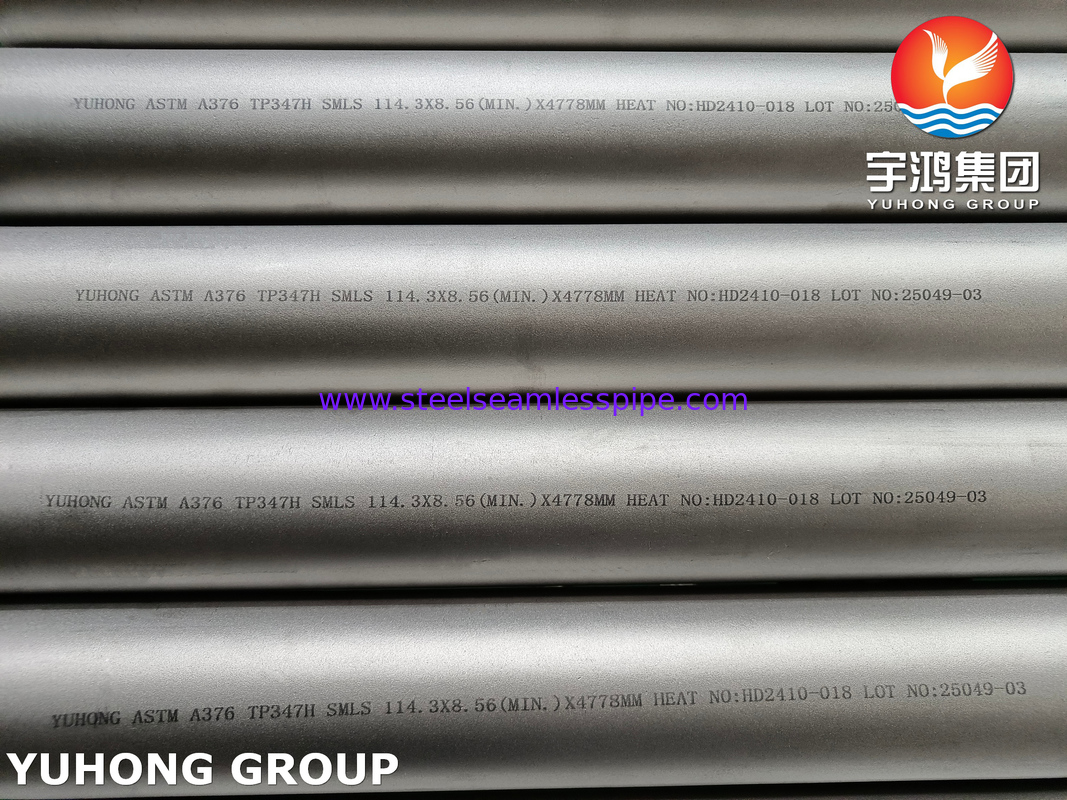

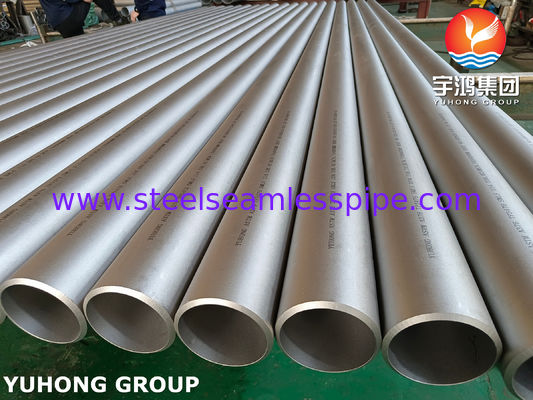

ASTM A376 TP347H seamless pipes are high-temperature austenitic stainless steel tubes stabilized with niobium (Nb). Engineered for superior creep resistance and oxidation resistance up to 815°C (1,500°F), they withstand extreme thermal cycling and corrosive environments. Compliant with ASTM A376 standards, these pipes are solution-annealed for optimal microstructural stability, making them ideal for critical high-pressure applications.

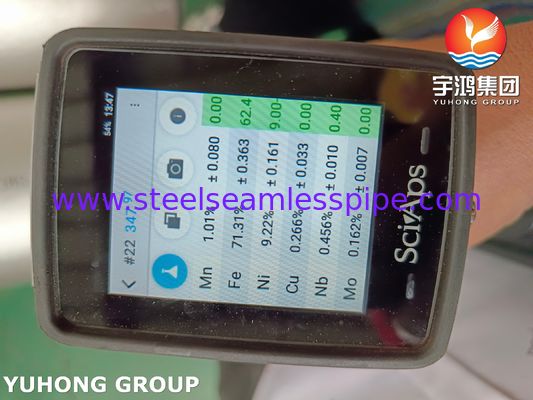

The niobium-stabilized chemistry prevents chromium carbide precipitation, enhancing intergranular corrosion resistance.
| Element | Min (%) | Max (%) |
|---|---|---|
| Carbon (C) | 0.04 | 0.10 |
| Chromium (Cr) | 17.0 | 20.0 |
| Nickel (Ni) | 9.0 | 13.0 |
| Niobium (Nb) | 8×C min | 1.10 |
| Manganese (Mn) | - | 2.00 |
| Silicon (Si) | - | 0.75 |
| Phosphorus (P) | - | 0.045 |
| Sulfur (S) | - | 0.030 |
| Iron (Fe) | Balance | Balance |
Globally recognized cross-standard designations:
| Standard | Equivalent Grade |
|---|---|
| UNS | S34709 |
| EN | 1.4912 |
| DIN | X8CrNiNb16-13 |
| JIS | SUS 347H TB |
| GB | 0Cr18Ni11Nb |
Post-solution annealing properties per ASTM A376:
| Property | Value |
|---|---|
| Tensile Strength | ≥515 MPa (75 ksi) |
| Yield Strength (0.2%) | ≥205 MPa (30 ksi) |
| Elongation (%) | ≥35% (50mm gauge length) |
| Hardness (Max) | 192 HB / 90 HRB |
| Test Temperature | Room Temperature (20°C) |
Manufactured to ASTM A376/A999 specifications:
| Parameter | Tolerance |
|---|---|
| Outer Diameter (OD) | ±0.75% for OD ≤ 48.3mm; ±0.50% for OD > 48.3mm |
| Wall Thickness | +20% / -12.5% |
| Length | +6mm / -0mm (for lengths ≤6m) |
| Straightness | 0.0015 × length (mm) |
Designed for critical thermal and corrosive environments:
Why Choose Our TP347H Seamless Pipes?
