| 원래 장소: | 중국 |
| 브랜드 이름: | Yuhong Group |
| 인증: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| 모델 번호: | C12200 |
| 최소 주문 수량: | 1000kg |
|---|---|
| 가격: | 협상 가능 |

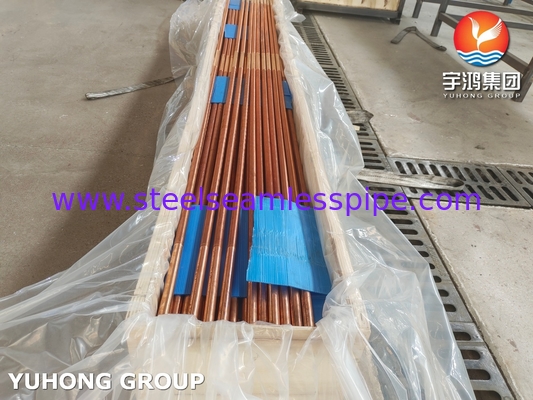

| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 7 일 |
| 지불 조건: | l/c, t/t, |
| 공급 능력: | 800톤/월 |
| 재료: | C12200/C106/Cu-DH/C1220/TP2 | 크기: | 3/8 인치 ~ 3 인치 |
|---|---|---|---|
| 성미 지정: | O60, O50, H58 | 모양: | 둥근 |
| ndt: | 유압 테스트, 에디 현재 테스트 | 애플리케이션: | HVAC (가열, 환기 및 에어컨), 냉장, 배관, 배선 및 열 교환기 |
| 강조하다: | C12200 phosphorus deoxidized copper tube,TP2 copper seamless tube for heat exchangers,99.9% Cu alloy tube with warranty |
||

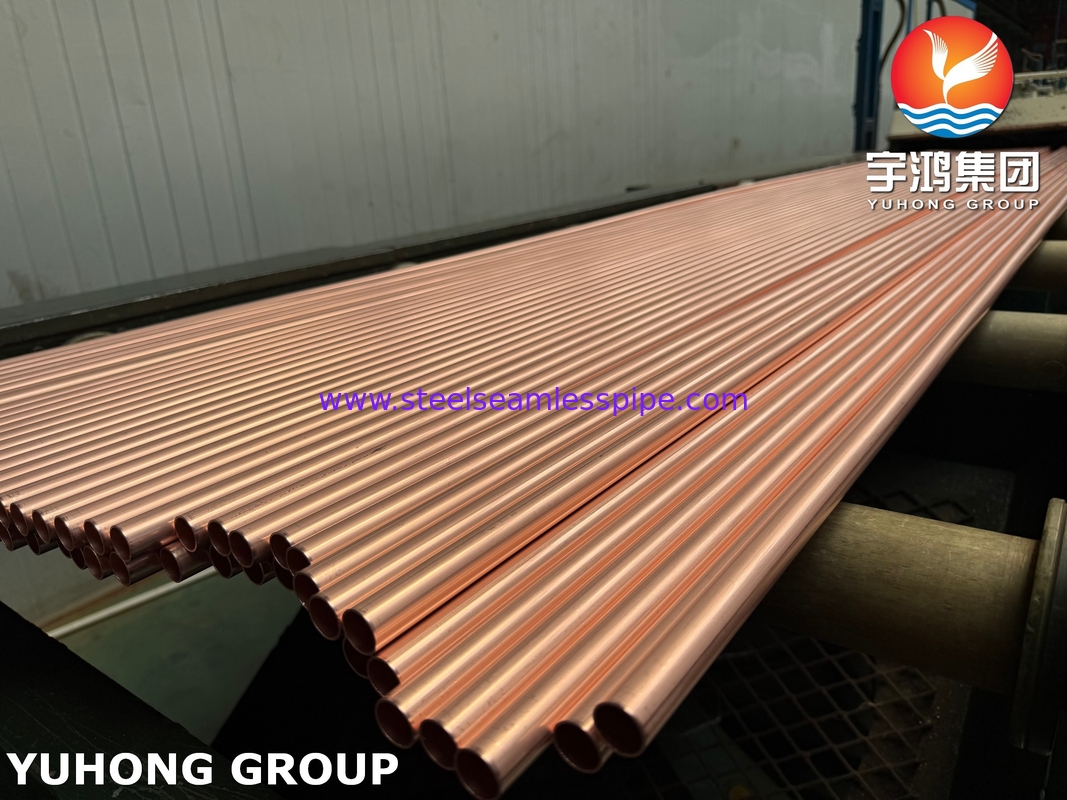

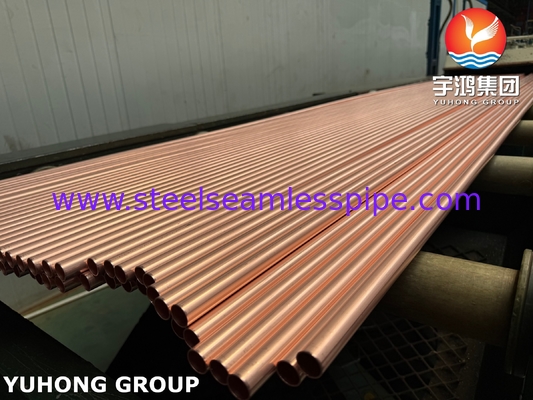

C12200/TP2 Phosphorus Deoxidized Copper Seamless Tube, 99.9% Cu for Heat Exchangers
Yuhong is a leading manufacturer and supplier of high-quality copper products. We focus on producing durable and efficient copper products that meet various global standards, including ASTM, JIS, DIN, and EN. Our C12200/TP2 copper seamless tubes are widely used in heat exchangers, condensers, and other thermal transfer systems across marine, power generation, and chemical industries.
C12200 Chemical Composition
| Element | Composition (%) |
|---|---|
| Copper (Cu)** | 99.9 (min) |
| Phosphorus (P) | 0.015 - 0.040 |
| Other Impurities | ≤ 0.03 |
Note: The high copper content ensures optimal thermal and electrical conductivity, while phosphorus eliminates oxygen, improving corrosion resistance and preventing hydrogen embrittlement.
Mechanical Properties
| Property | Annealed (O) | Half-Hard (H55) | Hard (H80) |
|---|---|---|---|
| Tensile Strength (MPa) | 205 - 275 | 275 - 345 | 345 - 415 |
| Yield Strength (MPa) | 50 - 100 | 100 - 200 | 200+ |
| Elongation (%) | ≥ 40 | 15 - 30 | ≤ 10 |
| Hardness (HV) | 40 - 60 | 80 - 110 | 110 - 150 |
Equivalent Standards Across Regions
The table below shows equivalent grades for C12200 under different international standards:
| Standard | Grade |
|---|---|
| ASTM (USA) | C12200 |
| JIS (Japan) | TP2 |
| EN (Europe) | CW024A |
| DIN (Germany) | SF-Cu |
| BS (UK) | C106 |
Heat Treatment States and Explanations
C12200 tubes are available in multiple heat treatment states, each suited to specific applications:
Annealed (O):
Half-Hard (H55):
Hard (H80):
Applications
1. Heat Exchangers and Condensers
2. Air Conditioning and Refrigeration Systems
3. Plumbing and Gas Distribution
4. Chemical Processing
5. Marine Applications
