| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ISO, TUV, PED etc. |
| 모델 번호: | ASTM B163 인콜로이 800H / N08810 |
| 최소 주문 수량: | 500kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라스틱 캡과 함께 나무로 되는 케이스 /Iron Case/ 뭉치 |
| 배달 시간: | 수량에 따라 다름 |
| 지불 조건: | 보자마자 T/T, L/C |
| 공급 능력: | 달 당 100톤 |
| 기준: | ASTM B163 / ASME SB163 | 재료: | 인코로이 800H / N08810 |
|---|---|---|---|
| 제품명: | 니켈 합금 인발관 | 응용: | 열교환기, 발전소 과열기, 열처리로 |
| 생산 과정: | 원활한 열간 압출 + 냉간 마무리 | 열처리: | 용액 어닐링, 급속 냉각 |
| 표면 마감: | 광휘소둔(BA), 산세/산세 | 비파괴 검사: | 수압시험(HT) / 와전류시험(ECT) / 초음파시험(UT) |
| 강조하다: | ASTM B163 Incoloy 800H seamless tube,Nickel alloy heat exchanger tubing,N08810 solution annealed tubing |
||

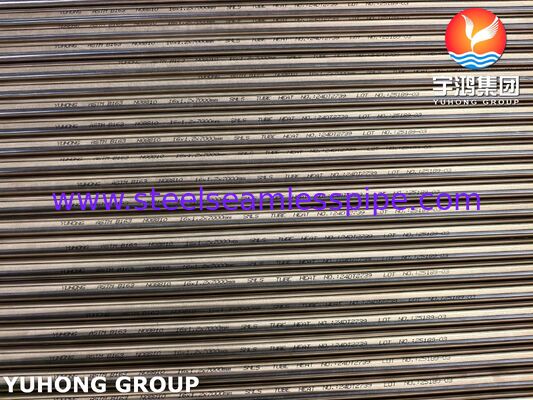

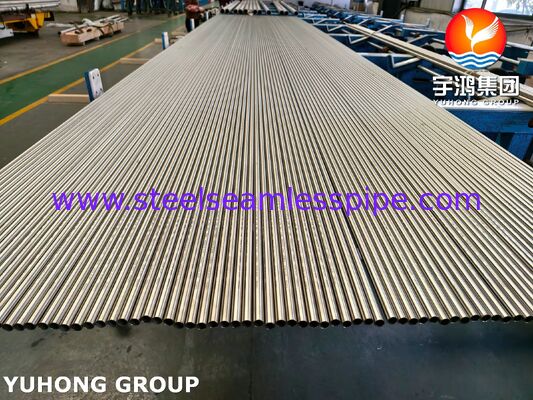

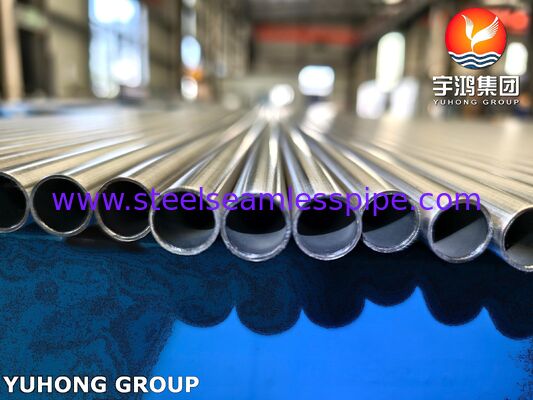

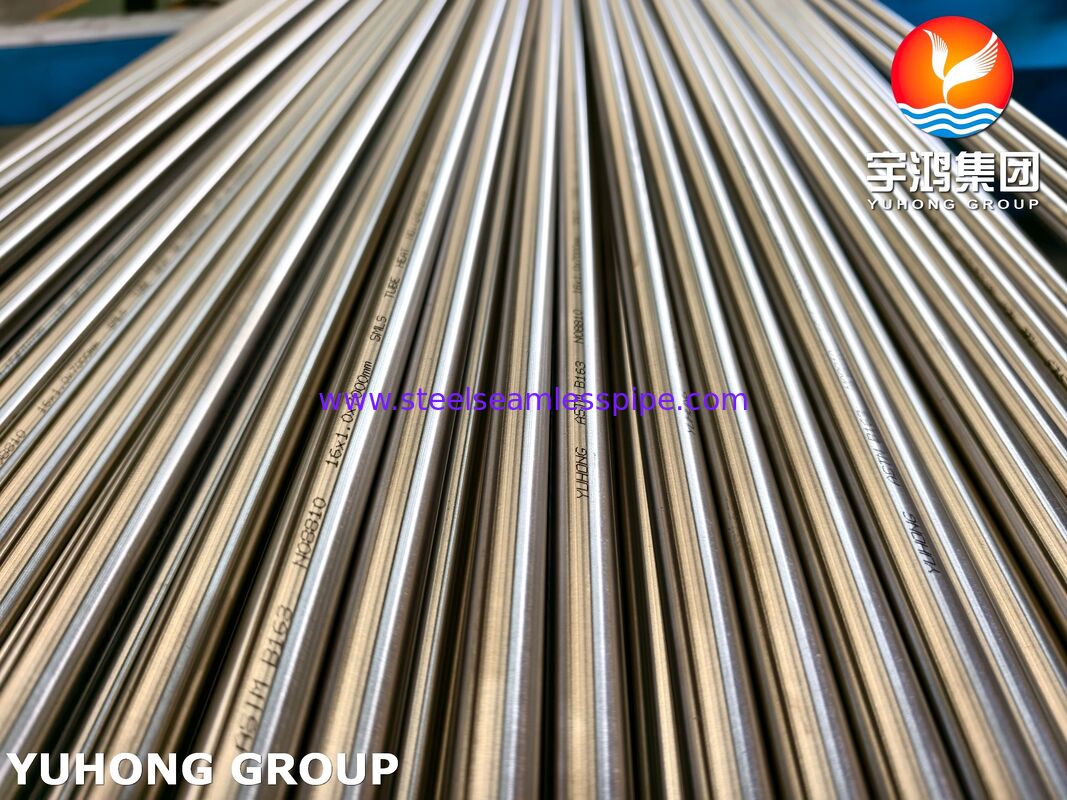

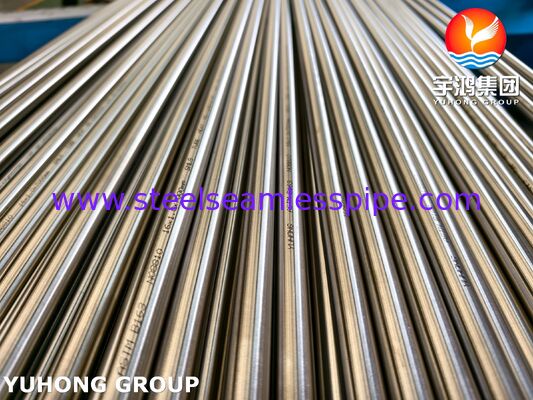

ASTM B163 Incoloy 800H / N08810 Nickel Alloy Tube, Solution Annealed Heat Exchanger Seamless Tubing
Overview of ASTM B163 Incoloy 800H / N08810 Nickel Alloy Tube
ASTM B163 UNS N08810 (Incoloy 800H) is a nickel‑iron‑chromium seamless alloy tube widely used for condensers, heat exchangers, and high‑temperature service. Produced strictly to ASTM B163 standard, it is supplied in solution‑annealed condition for excellent creep strength, thermal stability, and corrosion resistance.
With controlled carbon content and stabilized Al/Ti, it performs reliably at temperatures up to 800°C, resisting oxidation, carburization, and chloride stress corrosion cracking. It features good mechanical properties, uniform wall thickness, and tight dimensional tolerances.
Widely applied in petrochemical reformers, power plant heat exchangers, industrial furnace components, and high‑temperature process piping, it ensures long service life under harsh thermal and corrosive environments.
Key Material Features
Excellent high-temperature creep strength and rupture strength at 538℃–800℃
Superior oxidation and carburization resistance in high-temperature flue gas environments
High resistance to chloride stress corrosion cracking (SCC)
Good resistance to nitric acid, organic acid, alkaline solution and mixed corrosive media
Stable metallurgical structure, anti-thermal fatigue and long service life
Chemical Composition of Incoloy 800H(N08810) Nickel Alloy Tube
| Element | Specification Range |
|---|---|
| Nickel (Ni) | 30.00 – 35.00 |
| Chromium (Cr) | 19.00 – 23.00 |
| Iron (Fe) | Balance |
| Carbon (C) | 0.05 – 0.10 |
| Manganese (Mn) | ≤ 1.50 |
| Silicon (Si) | ≤ 1.00 |
| Copper (Cu) | ≤ 0.75 |
| Sulfur (S) | ≤ 0.015 |
| Aluminum (Al) | 0.15 – 0.60 |
| Titanium (Ti) | 0.15 – 0.60 |
Mechanical Properties of Incoloy 800H(N08810) Nickel Alloy Tube
| Mechanical Property | Minimum Requirement |
|---|---|
| Tensile Strength | ≥ 448 MPa (65 ksi) |
| Yield Strength (0.2% Offset) | ≥ 172 MPa (25 ksi) |
| Elongation (2 in / 50mm) | ≥ 30% |
| Grain Size | ASTM No.5 or coarser |
Main Applications
Heat exchanger tubes, condenser tubes, shell & tube heat exchangers
Petrochemical reformer furnace coils, high-temperature heating coils
Power plant superheater, reheater and auxiliary cooling system
Industrial furnace radiant tubes, heat treatment furnace components
Coal chemical, synthetic gas and high-temperature reaction pipeline systems
