| 원래 장소: | 중국 |
| 브랜드 이름: | YUHONG |
| 인증: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| 모델 번호: | ASME SB163 N04400 |
| 최소 주문 수량: | 100kg |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | Ply-Wooden 케이스 / 철 케이스 / 플라스틱 캡이있는 묶음 |
| 배달 시간: | 5-90 일 |
| 지불 조건: | t/t, l/c |
| 공급 능력: | 고객의 요구 사항에 따라 |
| 기준: | ASME SB163 | 재료 등급: | N02200 N02201 N06600 N06601 N06625 N04400 |
|---|---|---|---|
| 유형: | SMLS PE | 외경: | 6.35-609.6mm |
| 기술: | 콜드 롤링 핫 롤 | 애플리케이션: | 건축, 열교환 기, 석유 및 가스, 산업, 보일러 |
| 강조하다: | ASME SB163 N04400 nickel alloy tube,nickel alloy heat exchanger tube,seamless nickel alloy pipe |
||

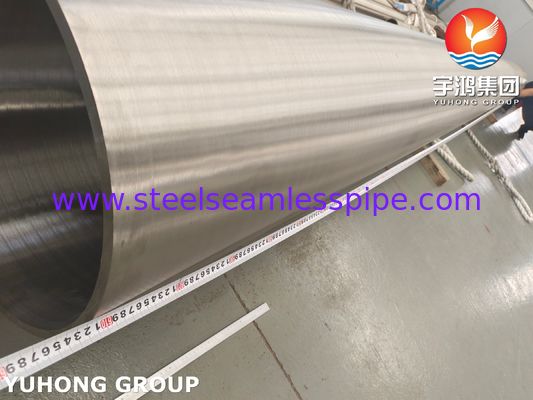

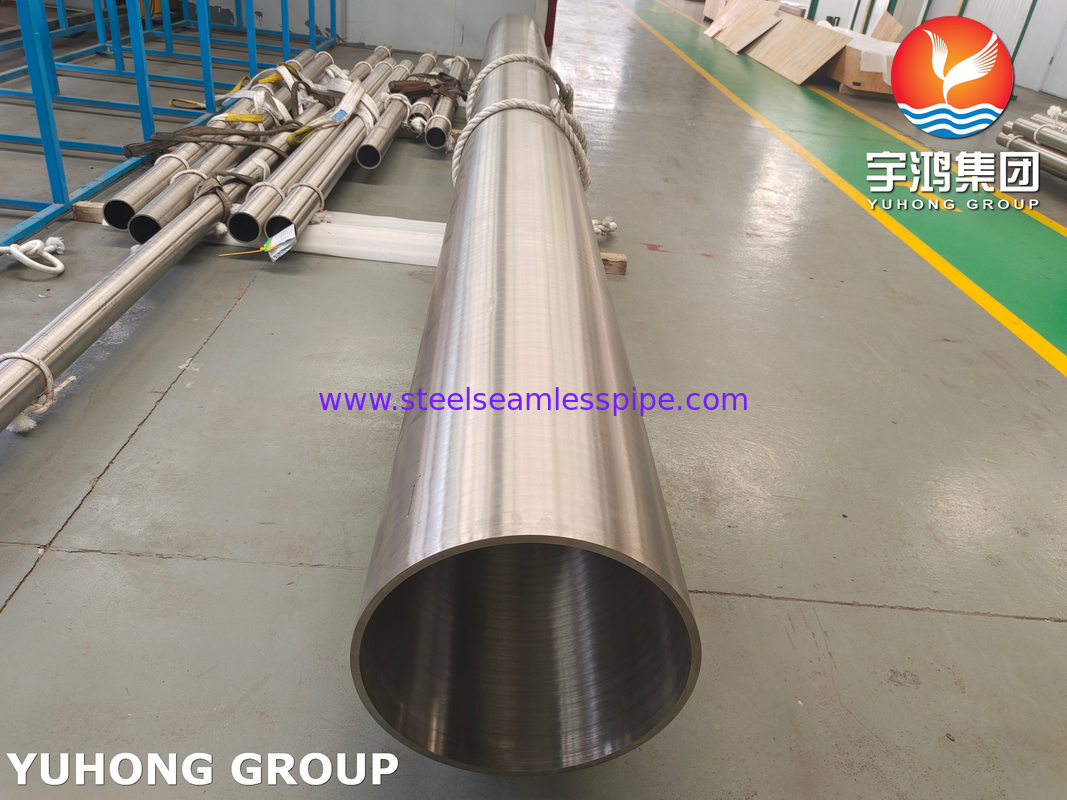

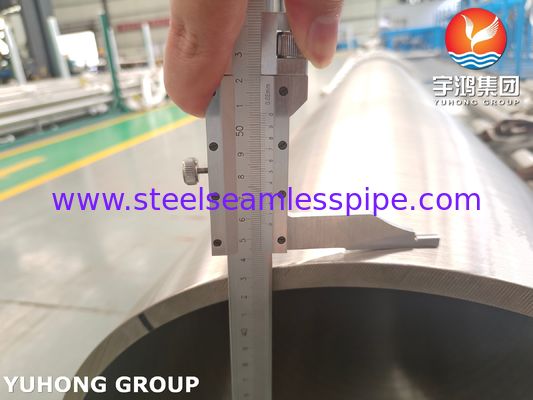

ASME SB163 N04400 nickel Alloy SMLS Heat Exchanger Tube Average Wallthichness
ASME SB163 UNS N04400 Monel 400 nickel alloy seamless pipe is a high-performance nickel-copper alloy pipe manufactured in strict compliance with the international ASME SB163 standard.
It is made from the renowned Monel 400 (UNS N04400) alloy, renowned for its excellent corrosion resistance to seawater, salt spray, sulfuric acid, and hydrofluoric acid.
Through its seamless forming process, this pipe features seamless welds, a uniform structure, and strong pressure-bearing capacity. This ensures high reliability and safety in high-pressure, high-temperature, or highly corrosive environments. Therefore, it is widely used in piping systems, heat exchangers, and core equipment components in critical sectors such as offshore engineering, shipbuilding, chemical processing, and the energy industry.
ASTM B163 UNS N04400 is a nickel-copper alloy containing more than 63.0% nickel and 28.0-34.0% copper content, it can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments. EN equivalent is WNR 2.4360.
| Alloy | Nickel | Copper | Manganese | Iron | Sulfur | Carbon | Silicon | Chromium |
| UNS N04400 | 63.0 min | 28.0 – 34.0 | 2.0 max | 2.5max | 0.024 max | 0.3max | 0.5 | … |
| Material and Condition | Tensile Strength Min. Ksi(MPa) | Yield Strength(0.2% Offset)Min,Ksi(MPa) | Elongation in 2in. or 50mm(or 4D)min. % | Rockwell Hardness(or Equivalent) for Annealed Ends[Note(1)] |
| Stress-relieved Alloy UNS N04400: | 85(586) | 55(379) | 15 | B75max |
| Material | Nominal Outside Diameter, In. (Mm) | Permissible Variations [Note(1)] | |||||
| Outside Diameter, In. (Mm) | Wall Thickness, % | ||||||
| Anerage Wall | Minimum Wall | ||||||
| + | – | + | – | + | – | ||
| UNS N02200, UNS N02201, And UNS N04400 | Average Wall | 0.005(0.13) | 0 | 12.5 | 12.5 | 25.0 | 0 |
| 8/5 To 1 1/2(15.9 To 38.1), Incl | 0.005(0.13) | 0.005(0.13) | 10.0 | 10.0 | 20.0 | 0 | |
| Over 1 1/2 To 3(38.1 To 76.2), Incl | 0.010(0.25) | 0.010(0.25) | 10.0 | 10.0 | 22.0 | 0 | |
| UNS N06600, UNS N066090, UNS N06045, UNS N06025, UNS N08800, UNS N08810, UNS N08811, UNS N08801, And UNS N08825 | 1/2 To 5/8 (12.7 To 15.9), Excl | 0.005(0.13) | 0.005(0.13) | 12.5 | 12.5 | 25.0 | 0 |
| 8/5 To 1 1/2 (15.9 To 38.1), Incl | 0.0075(0.19) | 0.0075(0.19) | 10.0 | 10.0 | 20.0 | 0 | |
| Over 1 1/2 To 3 (38.1 To 76.2), Incl | 0.010(0.25) | 0.010(0.25) | 10.0 | 10.0 | 22.0 | 0 | |
Application
ASME SB163 UNS N04400 Monel 400 nickel alloy seamless pipe is primarily used in harsh environments requiring excellent corrosion resistance and high mechanical strength. Its seamless structure ensures the pipe's integrity under pressure.
Its excellent performance in saltwater and acidic conditions makes it a key material in the marine and offshore industries, used in components such as propeller shafts, pump shafts, seawater valves, and heat exchanger tubes on ships and platforms.
In the chemical processing industry, it is an essential material for handling sulfuric acid, hydrofluoric acid, alkalis, and solvents, and is used in reactors, distillation columns, and process piping systems. Furthermore, its ability to maintain strength across a wide temperature range, from cryogenic to high temperatures, extends its reliability to wellhead components and crude oil pipelines in oil and gas production, feedwater heaters and evaporator tubes in power generation, and fuel and hydraulic lines in aerospace and military applications.
